PC702V0NSZX

PC702V0NSZX

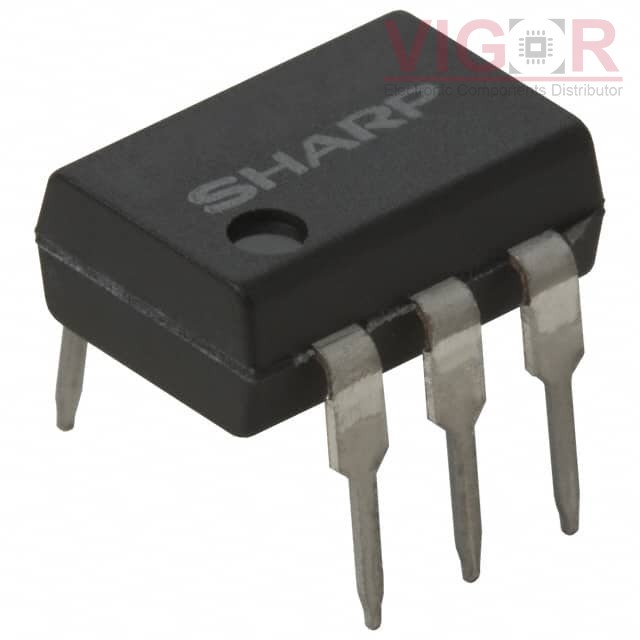

Image is for reference,
please contact us to get the real picture

Part No :

PC702V0NSZX

Manufacturer
Sharp Microelectronics
Description
OPTOISO 5KV TRANS W/BASE 6DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
PC702V0NSZX PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PC702V0NSZX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC702V0NSZX Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):-
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):2µs, 2µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package:6-DIP
