Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of ZA120MADP3 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | ZA |
Package: | Bulk |
Part Status: | Active |
Driver Circuitry: | Indicator, Internally Driven |
Input Type: | AC, DC |
Voltage - Rated: | - |
Voltage Range: | 48 ~ 120V |
Frequency: | 3.3kHz |
Technology: | Piezo |
Operating Mode: | Double Pulse, Slow |
Duration: | 0.5 PPS |
Sound Pressure Level (SPL): | 75dB @ 48V, 61cm |
Current - Supply: | 40mA |
Port Location: | Top |
Operating Temperature: | -30°C ~ 65°C |
Approval Agency: | cUL, UL |
Ratings: | - |
Ingress Protection: | NEMA 3R, 4X, 12 |
Mounting Type: | Panel Mount |
Termination: | Terminal Block |
Size / Dimension: | 1.210" Dia (30.74mm) |
Height - Seated (Max): | 2.234" (56.75mm) |

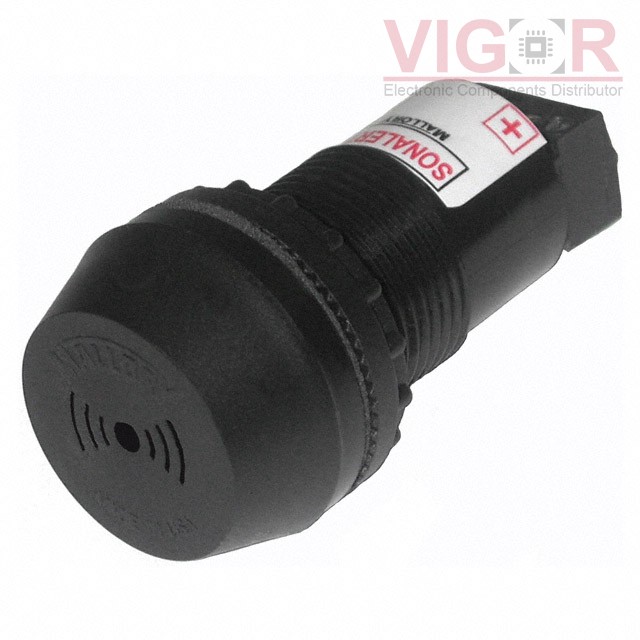

AUDIO PIEZO IND 48-120V PNL MNT
