Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of SC110DR is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | SC |
Package: | Bulk |
Part Status: | Active |
Driver Circuitry: | Indicator, Internally Driven |
Input Type: | AC, DC |
Voltage - Rated: | - |
Voltage Range: | 30 ~ 120V |
Frequency: | 2kHz |
Technology: | Piezo |
Operating Mode: | Single Tone |
Duration: | - |
Sound Pressure Level (SPL): | 60dB @ 30V, 61cm |
Current - Supply: | 6 ~ 21mA |
Port Location: | Top |
Operating Temperature: | -30°C ~ 65°C |
Approval Agency: | cUL, UL |
Ratings: | - |
Ingress Protection: | - |
Mounting Type: | Panel Mount |
Termination: | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
Size / Dimension: | 1.687" Dia (42.85mm) |
Height - Seated (Max): | 1.399" (35.54mm) |

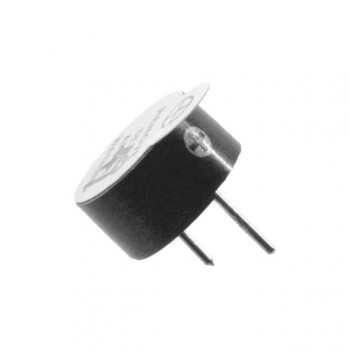

AUDIO PIEZO IND 30-120V PNL MNT
