Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CPE-1785 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | CPE |
Package: | Tray |
Part Status: | Active |
Driver Circuitry: | Transducer, Externally Driven |
Input Type: | Peak-Peak Signal |
Voltage - Rated: | 10 V |
Voltage Range: | 20V (Max) |
Frequency: | - |
Technology: | Piezo |
Operating Mode: | Single Tone |
Duration: | - |
Sound Pressure Level (SPL): | 85dB @ 10V, 10cm |
Current - Supply: | 8mA |
Port Location: | Top |
Operating Temperature: | -30°C ~ 80°C |
Approval Agency: | - |
Ratings: | - |
Ingress Protection: | - |
Mounting Type: | Through Hole |
Termination: | PC Pins |
Size / Dimension: | 0.669" Dia (17.00mm) |
Height - Seated (Max): | 0.327" (8.30mm) |

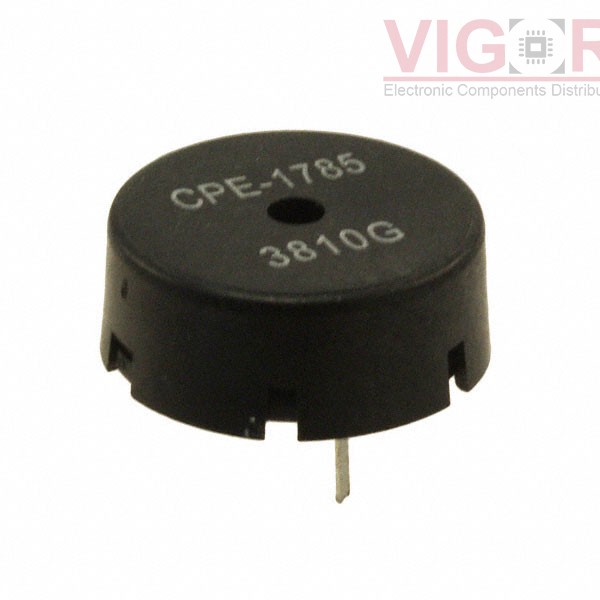

AUDIO PIEZO TRANSDUCER 20V TH
