Type | Description |
---|---|
Series: | - |
Package: | Tray |
Part Status: | Active |
Driver Circuitry: | Transducer, Externally Driven |
Input Type: | Peak-Peak Signal |
Voltage - Rated: | 5 V |
Voltage Range: | 1 ~ 20V |
Frequency: | 4kHz |
Technology: | Piezo |
Operating Mode: | - |
Duration: | - |
Sound Pressure Level (SPL): | 80dB @ 5V, 10cm |
Current - Supply: | 1mA |
Port Location: | Top |
Operating Temperature: | -20°C ~ 70°C |
Approval Agency: | - |
Ratings: | - |
Ingress Protection: | - |
Mounting Type: | Through Hole |
Termination: | PC Pins |
Size / Dimension: | 0.543" Dia (13.80mm) |
Height - Seated (Max): | 0.287" (7.30mm) |

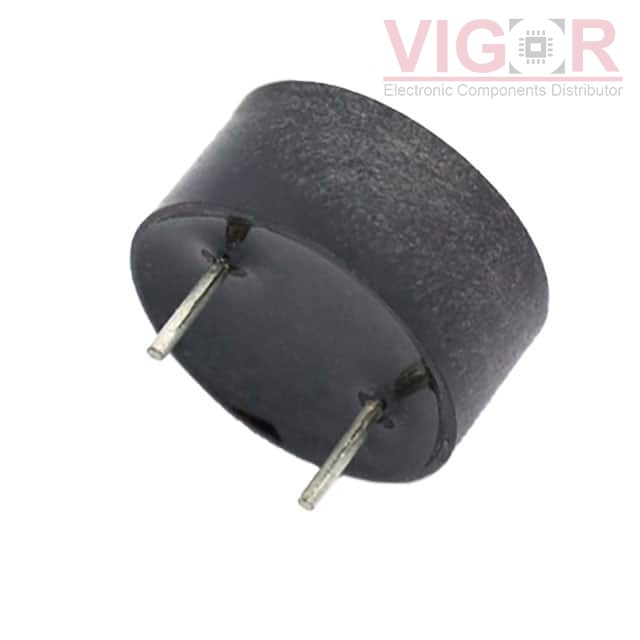

PIEZO TRANSDUCER
