Type | Description |
---|---|
Series: | ZA |
Package: | Bulk |
Part Status: | Active |
Driver Circuitry: | Indicator, Internally Driven |
Input Type: | DC |
Voltage - Rated: | - |
Voltage Range: | 16 ~ 28V |
Frequency: | 3.3kHz |
Technology: | Piezo |
Operating Mode: | Siren, Slow |
Duration: | 2 SPS |
Sound Pressure Level (SPL): | 75dB @ 16V, 61cm |
Current - Supply: | 40mA |
Port Location: | Top |
Operating Temperature: | -30°C ~ 65°C |
Approval Agency: | cUL, UL |
Ratings: | - |
Ingress Protection: | NEMA 3R, 4X, 12 |
Mounting Type: | Panel Mount |
Termination: | Terminal Block |
Size / Dimension: | 1.210" Dia (30.74mm) |
Height - Seated (Max): | 2.234" (56.75mm) |

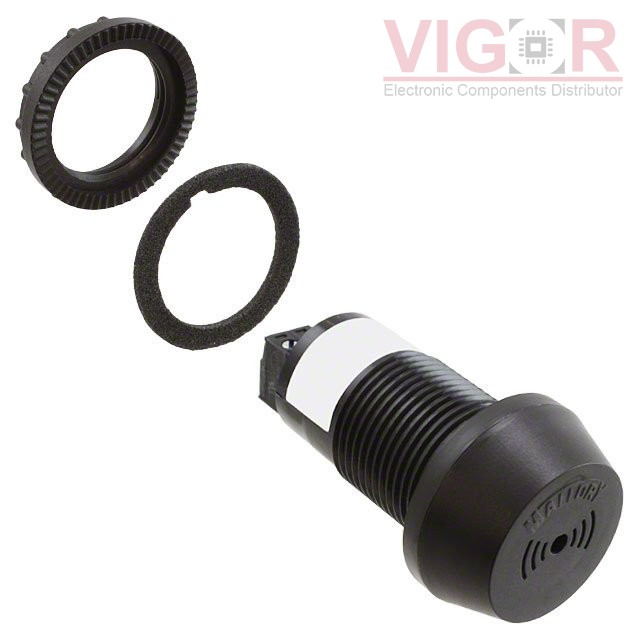

AUDIO PIEZO IND 16-28V PNL MNT
