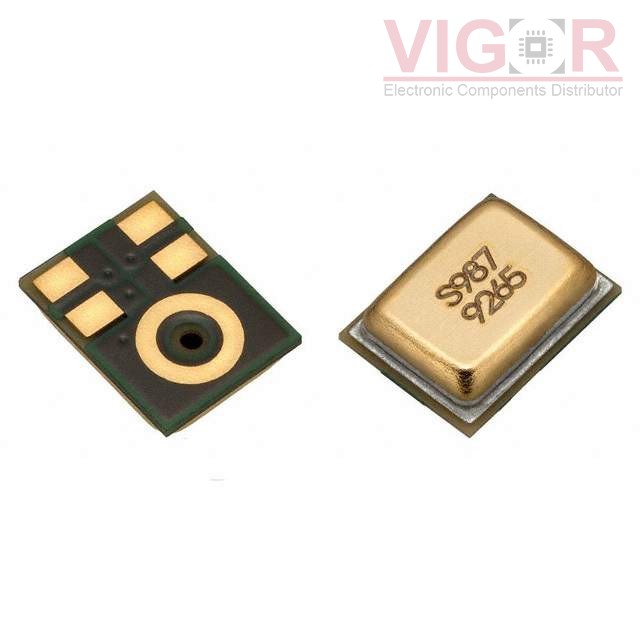

Current price of SPH0611LR5H-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | SiSonic™ |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Not For New Designs |
Type: | MEMS (Silicon) |
Output Type: | Analog |
Direction: | Omnidirectional |
Frequency Range: | 100 Hz ~ 10.0 kHz |
Sensitivity: | -38dB ±1dB @ 94dB SPL |
S/N Ratio: | 65dB |
Impedance: | 400 Ohms |
Voltage - Rated: | - |
Voltage Range: | 1.5 V ~ 3.6 V |
Current - Supply: | 185 µA |
Port Location: | Bottom |
Ratings: | - |
Termination: | Solder Pads |
Size / Dimension: | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
Height (Max): | 0.043" (1.10mm) |
Shape: | Rectangular |
