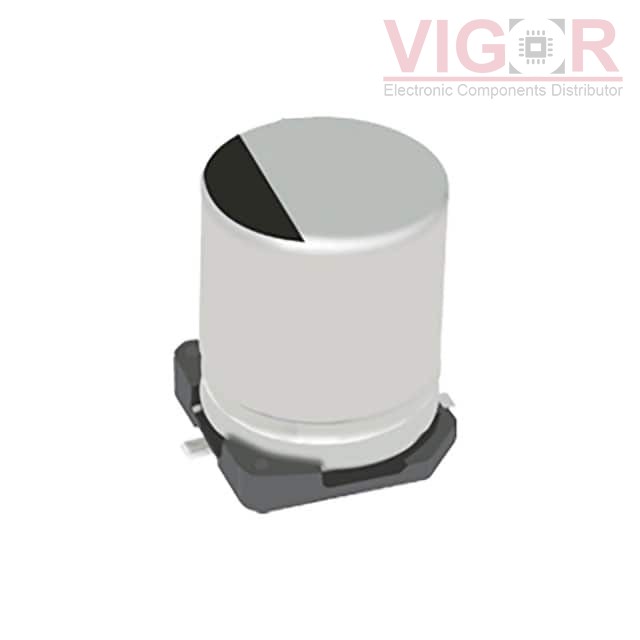

EEE-FN1E560UR

Image is for reference,
please contact us to get the real picture

Part No :

EEE-FN1E560UR

Manufacturer
Panasonic
Description
CAP ALUM 56UF 25VDC 20% SMD
Catalog
Aluminum Electrolytic Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
EEE-FN1E560UR PDF
Availability
1863 pieces
Unit Price
$0.52000

Current price of EEE-FN1E560UR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:FN
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Capacitance:56 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):700mOhm @ 100kHz
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Polarization:Polar
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:104 mA @ 120 Hz
Ripple Current @ High Frequency:160 mA @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.197" Dia (5.00mm)
Height - Seated (Max):0.240" (6.10mm)
Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

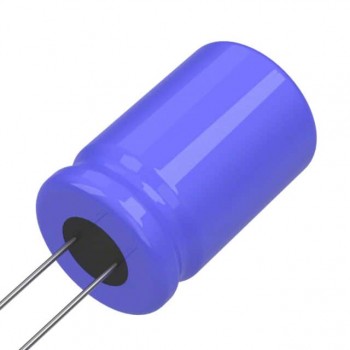

HOT 672D477F020EK5D

672D477F020EK5D

CAP ALUM 470UF 20V RADIAL
HOT UKL1E470KEDANA

UKL1E470KEDANA

CAP ALUM 47UF 10% 25V RADIAL

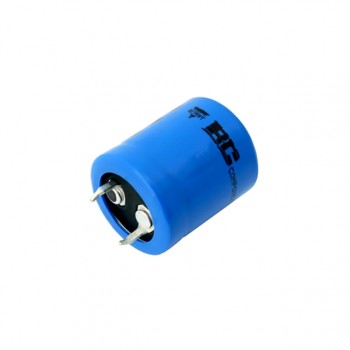

HOT MAL205972101E3
