EEE-HAE101XAP

EEE-HAE101XAP

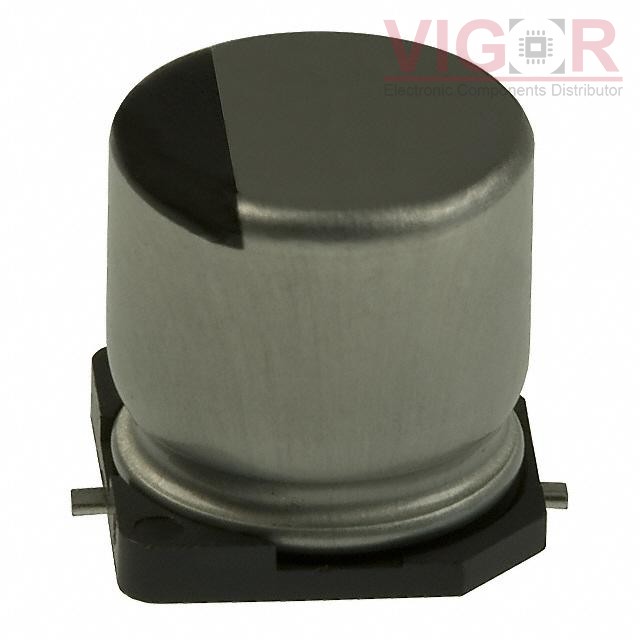

Image is for reference,
please contact us to get the real picture

Part No :

EEE-HAE101XAP

Manufacturer
Panasonic
Description
CAP ALUM 100UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
EEE-HAE101XAP PDF
Availability
0 pieces
Unit Price
$0.49000

Current price of EEE-HAE101XAP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EEE-HAE101XAP Specifications
Type Description
Series:HA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Capacitance:100 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:1000 Hrs @ 105°C
Operating Temperature:-40°C ~ 105°C
Polarization:Polar
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:91 mA @ 120 Hz
Ripple Current @ High Frequency:154.7 mA @ 10 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.248" Dia (6.30mm)
Height - Seated (Max):0.303" (7.70mm)
Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
