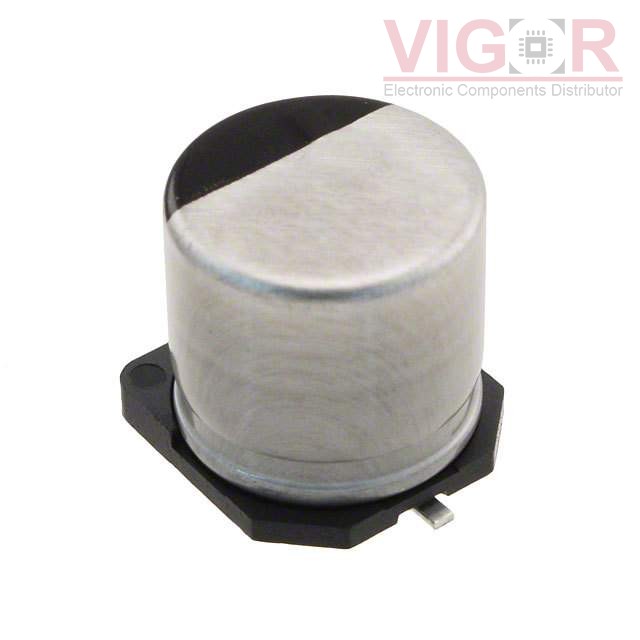

EEE-TP70821M

EEE-TP70821M

Image is for reference,
please contact us to get the real picture

Part No :

EEE-TP70821M

Manufacturer
Panasonic
Description
CAP ALUM 820UF 20% 70V RADIAL
Catalog
Aluminum Electrolytic Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
EEE-TP70821M PDF
Availability
0 pieces
Unit Price
$2.92000

Current price of EEE-TP70821M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EEE-TP70821M Specifications
Type Description
Series:TP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Capacitance:820 µF
Tolerance:±20%
Voltage - Rated:70 V
ESR (Equivalent Series Resistance):68mOhm @ 100kHz
Lifetime @ Temp.:4000 Hrs @ 125°C
Operating Temperature:-55°C ~ 125°C
Polarization:Polar
Ratings:AEC-Q200
Applications:Automotive, High Temperature Reflow
Ripple Current @ Low Frequency:1.95 A @ 120 Hz
Ripple Current @ High Frequency:2.6 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.709" Dia (18.00mm)
Height - Seated (Max):0.866" (22.00mm)
Surface Mount Land Size:0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT EEE-FC1V1R0AR

EEE-FC1V1R0AR

CAP ALUM 1UF 20% 35V SMD

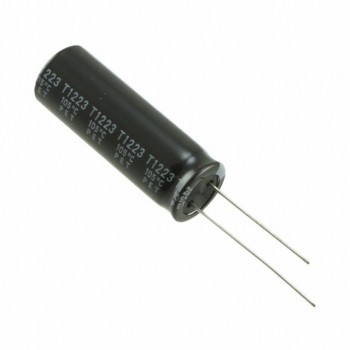

HOT 450BXW47MEFR12.5X35

450BXW47MEFR12.5X35

CAP ALUM 47UF 20% 450V T/H

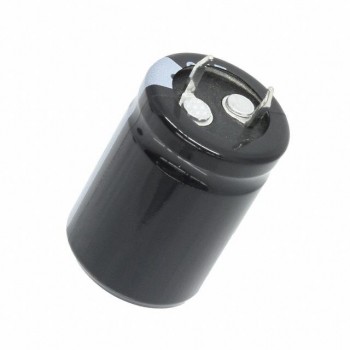

HOT SLP391M315C4P3
