Type | Description |
---|---|
Series: | NPCAP™-PXE |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Type: | Polymer |
Capacitance: | 150 µF |
Tolerance: | ±20% |
Voltage - Rated: | 4 V |
ESR (Equivalent Series Resistance): | 22mOhm |
Lifetime @ Temp.: | 2000 Hrs @ 105°C |
Operating Temperature: | -55°C ~ 105°C |
Ratings: | - |
Applications: | General Purpose |
Ripple Current @ Low Frequency: | - |
Ripple Current @ High Frequency: | 2.61 A @ 100 kHz |
Impedance: | - |
Lead Spacing: | - |
Size / Dimension: | 0.197" Dia (5.00mm) |
Height - Seated (Max): | 0.228" (5.80mm) |
Surface Mount Land Size: | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
Mounting Type: | Surface Mount |
Package / Case: | Radial, Can - SMD |
MEDIUM SMART PCB JBOX- 1000MM CA

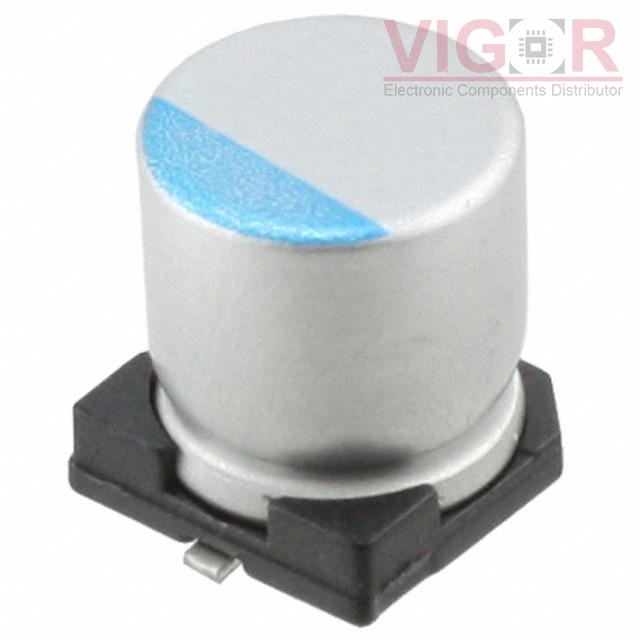

CAP ALUM POLY 150UF 20% 4V SMD
