EEH-ZF1H560V

EEH-ZF1H560V

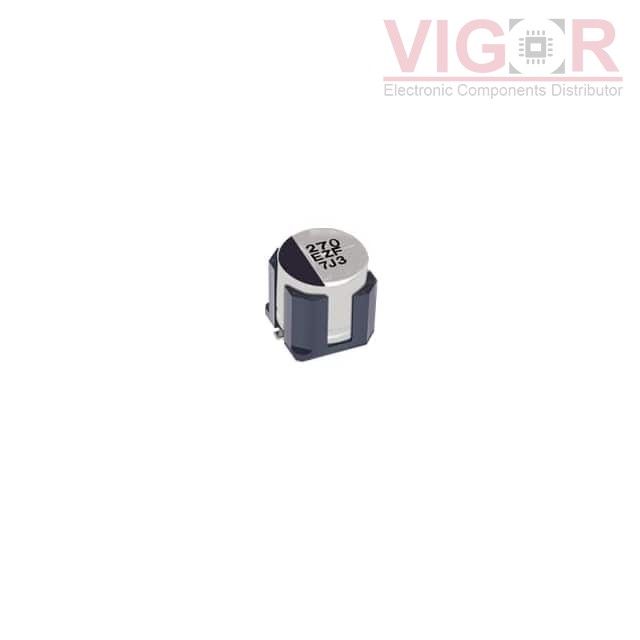

Image is for reference,
please contact us to get the real picture

Part No :

EEH-ZF1H560V

Manufacturer
Panasonic
Description
CAP ALUM POLY HYB 56UF 50V SMD
Catalog
Aluminum - Polymer Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
EEH-ZF1H560V PDF
Availability
1000 pieces
Unit Price
$2.53000

Current price of EEH-ZF1H560V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EEH-ZF1H560V Specifications
Type Description
Series:ZF, Anti-Vibration
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Hybrid
Capacitance:56 µF
Tolerance:±20%
Voltage - Rated:50 V
ESR (Equivalent Series Resistance):35mOhm
Lifetime @ Temp.:1000 Hrs @ 150°C
Operating Temperature:-55°C ~ 150°C
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:105 mA @ 100 Hz
Ripple Current @ High Frequency:700 mA @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):0.425" (10.80mm)
Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MAL218297104E3

MAL218297104E3

CAP ALUM 68UF 50V 10000H

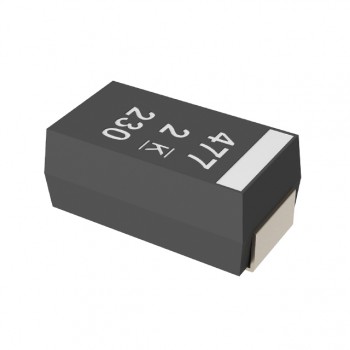

HOT A700X477M2R5ATE010

A700X477M2R5ATE010

CAP ALUM POLY 470UF 20% 2.5V SMD

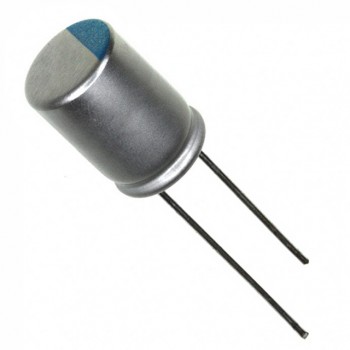

HOT 567UER6R3MEF
