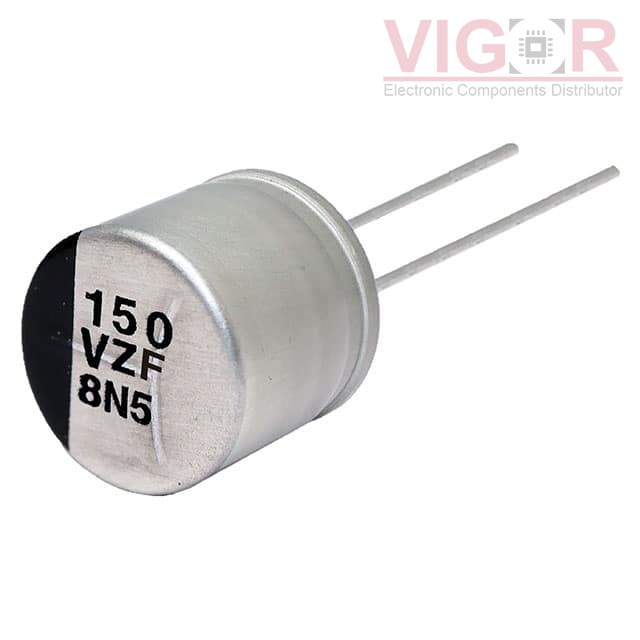

EEH-AZF1J560

EEH-AZF1J560

Image is for reference,
please contact us to get the real picture

Part No :

EEH-AZF1J560

Manufacturer
Panasonic
Description
CAP ALUM POLY 56UF 20% 63V T/H
Catalog
Aluminum - Polymer Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
EEH-AZF1J560 PDF
Availability
842 pieces
Unit Price
$2.14000

Current price of EEH-AZF1J560 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EEH-AZF1J560 Specifications
Type Description
Series:ZF
Package:Bulk
Part Status:Active
Type:Hybrid
Capacitance:56 µF
Tolerance:±20%
Voltage - Rated:63 V
ESR (Equivalent Series Resistance):30mOhm
Lifetime @ Temp.:1000 Hrs @ 150°C
Operating Temperature:-55°C ~ 150°C
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:126 mA @ 100 Hz
Ripple Current @ High Frequency:840 mA @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.413" (10.50mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RE50E821MDN1PX

RE50E821MDN1PX

CAP ALUM POLY 820UF 20% 2.5V T/H

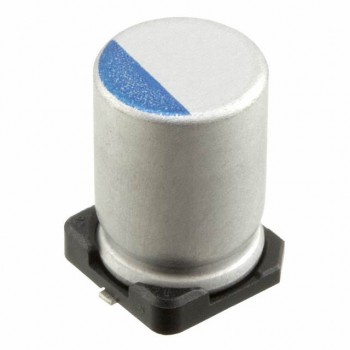

HOT PCV1D221MCL1GS

PCV1D221MCL1GS

CAP ALUM POLY 220UF 20% 20V SMD

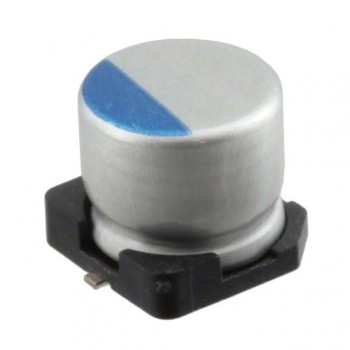

HOT PCJ1C680MCL1GS
