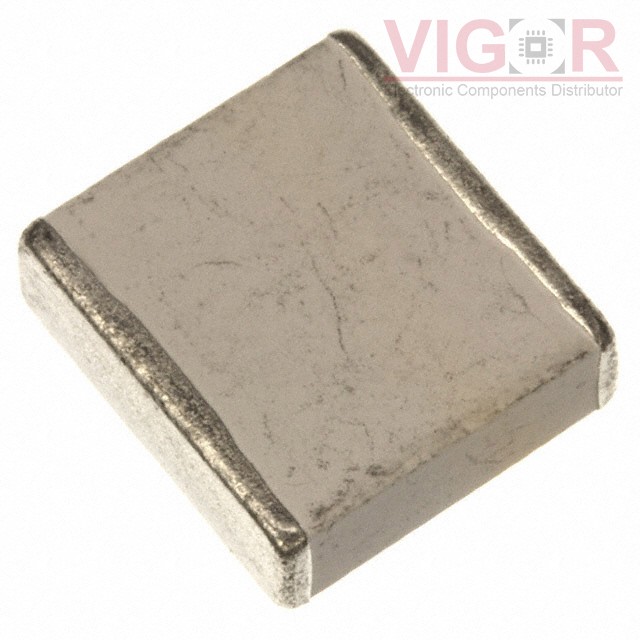

HQCEWA561JAT6A

HQCEWA561JAT6A

Image is for reference,
please contact us to get the real picture

Part No :

HQCEWA561JAT6A

Manufacturer
Elco (AVX)
Description
CAP CER 560PF 2.5KV NP0 3838
Catalog
Ceramic Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
HQCEWA561JAT6A PDF
Availability
18 pieces
Unit Price
$31.27000

Current price of HQCEWA561JAT6A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HQCEWA561JAT6A Specifications
Type Description
Series:Hi-Q®
Package:Tray
Part Status:Obsolete
Capacitance:560 pF
Tolerance:±5%
Voltage - Rated:2500V (2.5kV)
Temperature Coefficient:C0G, NP0
Operating Temperature:-55°C ~ 125°C
Features:High Q, Low Loss, Ultra Low ESR, High Voltage
Ratings:-
Applications:RF, Microwave, High Frequency
Failure Rate:-
Mounting Type:Surface Mount, MLCC
Package / Case:3838 (9797 Metric)
Size / Dimension:0.380" L x 0.380" W (9.65mm x 9.65mm)
Height - Seated (Max):-
Thickness (Max):0.170" (4.32mm)
Lead Spacing:-
Lead Style:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1210J0160392FFR

1210J0160392FFR

CAP CER 3900PF 16V C0G/NP0 1210

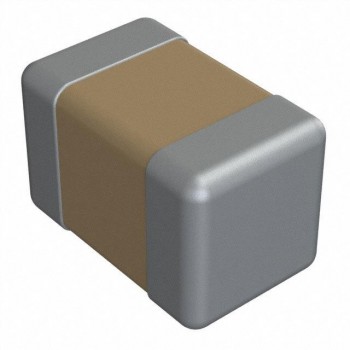

HOT 0805J1000471JCR

0805J1000471JCR

CAP CER 470PF 100V C0G/NP0 0805

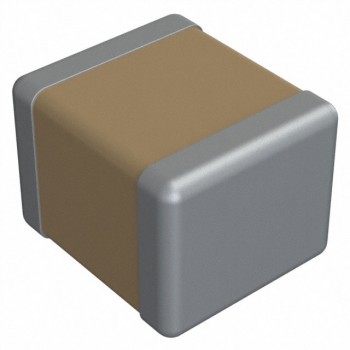

HOT 2220Y6K00181GCR
