ECW-F6563HL

ECW-F6563HL

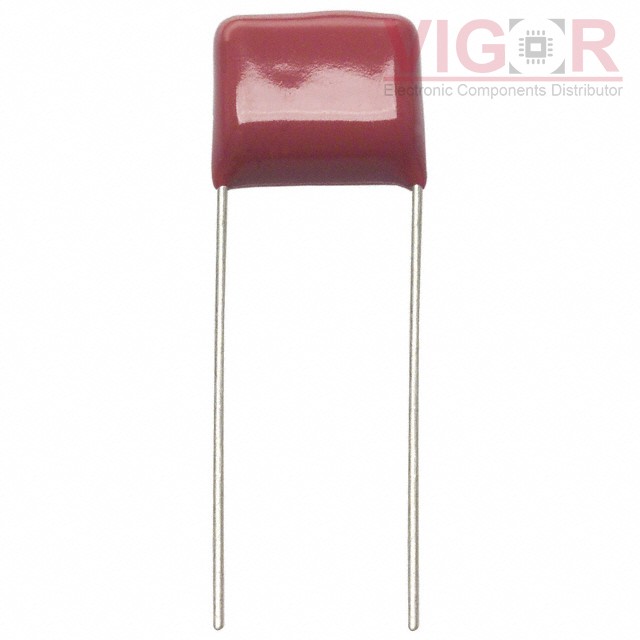

Image is for reference,
please contact us to get the real picture

Part No :

ECW-F6563HL

Manufacturer
Panasonic
Description
CAP FILM 0.056UF 3% 630VDC RAD
Catalog
Film Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
ECW-F6563HL PDF
Availability
4367 pieces
Unit Price
$1.74000

Current price of ECW-F6563HL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECW-F6563HL Specifications
Type Description
Series:ECW-F(L)
Package:Bulk
Part Status:Active
Capacitance:0.056 µF
Tolerance:±3%
Voltage Rating - AC:223V
Voltage Rating - DC:630V
Dielectric Material:Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):-
Operating Temperature:-40°C ~ 105°C
Mounting Type:Through Hole
Package / Case:Radial
Size / Dimension:0.610" L x 0.268" W (15.50mm x 6.80mm)
Height - Seated (Max):0.500" (12.70mm)
Termination:PC Pins
Lead Spacing:0.492" (12.50mm)
Applications:High Frequency, Switching
Ratings:-
Features:-
