ECH-S1563JZ

ECH-S1563JZ

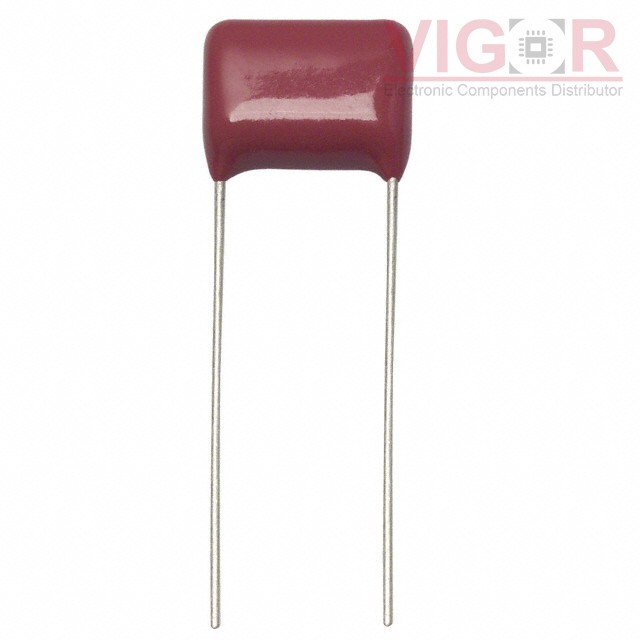

Image is for reference,
please contact us to get the real picture

Part No :

ECH-S1563JZ

Manufacturer
Panasonic
Description
CAP FILM 0.056UF 5% 100VDC RAD
Catalog
Film Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 23 - Aug 27 2025
DataSheet
ECH-S1563JZ PDF
Availability
7226 pieces
Unit Price
$0.85000

Current price of ECH-S1563JZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECH-S1563JZ Specifications
Type Description
Series:ECHS(Z)
Package:Bulk
Part Status:Obsolete
Capacitance:0.056 µF
Tolerance:±5%
Voltage Rating - AC:-
Voltage Rating - DC:100V
Dielectric Material:Polyphenylene Sulfide (PPS)
ESR (Equivalent Series Resistance):-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:Radial
Size / Dimension:0.571" L x 0.256" W (14.50mm x 6.50mm)
Height - Seated (Max):0.520" (13.20mm)
Termination:PC Pins
Lead Spacing:0.394" (10.00mm)
Applications:High Frequency, Switching
Ratings:-
Features:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

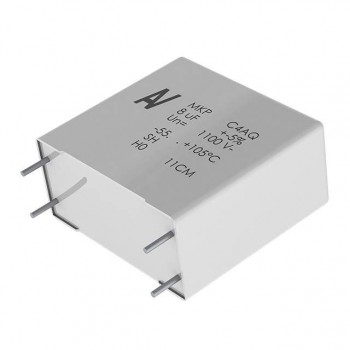

HOT C4AQILW4800M33J

C4AQILW4800M33J

CAP FILM 8UF 5% 800VDC RADIAL

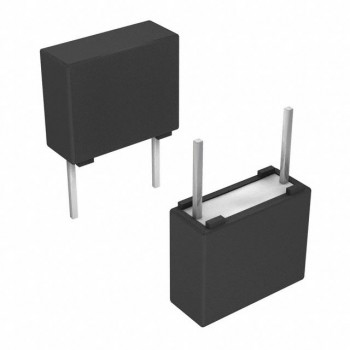

HOT BFC237364683
