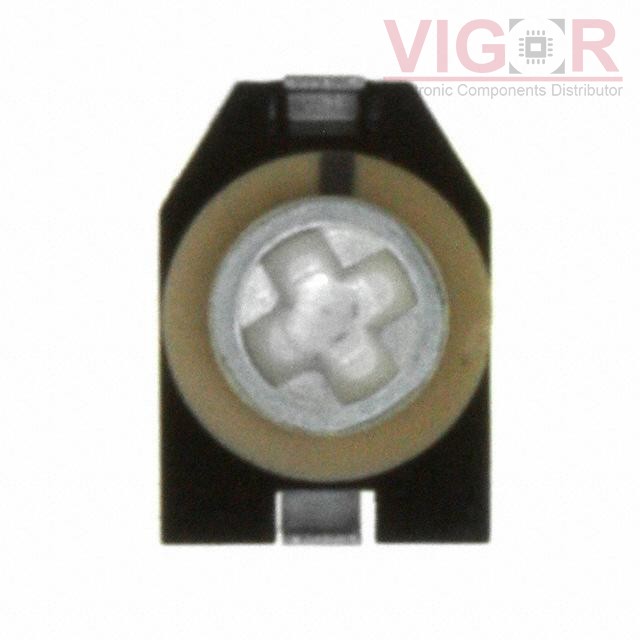

CTZ3E-05A-W1-PF

CTZ3E-05A-W1-PF

Image is for reference,
please contact us to get the real picture

Part No :

CTZ3E-05A-W1-PF

Manufacturer
KYOCERA Corporation
Description
CAP TRIMMER 1.5-5PF 25V SMD
Catalog
Trimmers, Variable Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
CTZ3E-05A-W1-PF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CTZ3E-05A-W1-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CTZ3E-05A-W1-PF Specifications
Type Description
Series:CTZ, Kyocera
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Capacitance Range:1.5 ~ 5pF
Adjustment Type:Top
Voltage - Rated:25 V
Dielectric Material:Ceramic
Q @ Freq:300 @ 1MHz
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.071" (1.80mm)
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Features:Low Profile
