AOK75B65H1

AOK75B65H1

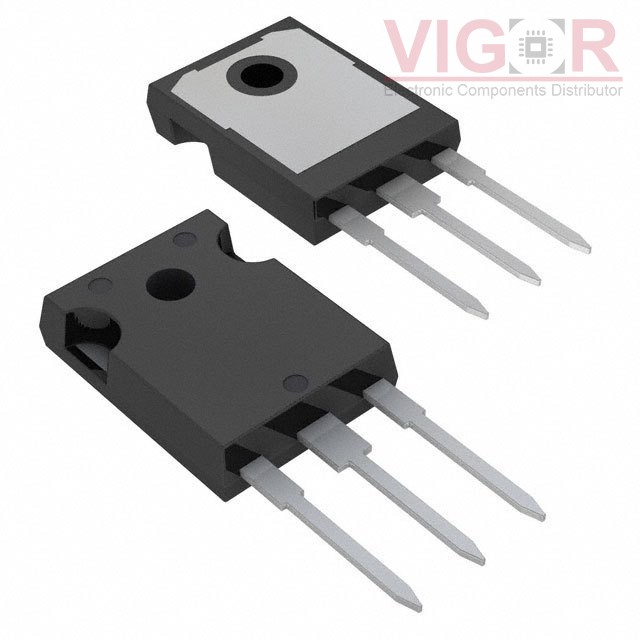

Image is for reference,
please contact us to get the real picture

Part No :

AOK75B65H1

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
IGBT 650V 75A TO-247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
AOK75B65H1 PDF
Availability
0 pieces
Unit Price
$3.77492

Current price of AOK75B65H1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AOK75B65H1 Specifications
Type Description
Series:Alpha IGBT™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):150 A
Current - Collector Pulsed (Icm):225 A
Vce(on) (Max) @ Vge, Ic:2.4V @ 15V, 75A
Power - Max:556 W
Switching Energy:3.77mJ (on), 2.04mJ (off)
Input Type:Standard
Gate Charge:109 nC
Td (on/off) @ 25°C:47ns/175ns
Test Condition:400V, 75A, 4Ohm, 15V
Reverse Recovery Time (trr):295 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
