AIGW50N65F5XKSA1

AIGW50N65F5XKSA1

Image is for reference,
please contact us to get the real picture

Part No :

AIGW50N65F5XKSA1

Manufacturer
IR (Infineon Technologies)
Description
IGBT 650V TO247-3
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
AIGW50N65F5XKSA1 PDF
Availability
341 pieces
Unit Price
$7.07000

Current price of AIGW50N65F5XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AIGW50N65F5XKSA1 Specifications
Type Description
Series:Automotive, AEC-Q101, Trenchstop™ 5
Package:Tube
Part Status:Active
IGBT Type:Trench
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):-
Current - Collector Pulsed (Icm):150 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 50A
Power - Max:270 W
Switching Energy:490µJ (on), 140µJ (off)
Input Type:Standard
Gate Charge:1018 nC
Td (on/off) @ 25°C:21ns/156ns
Test Condition:400V, 25A, 12Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:PG-TO247-3-41
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IXYB82N120C3H1

IXYB82N120C3H1

IGBT 1200V 164A 1040W PLUS264
HOT IKQ75N120CS6XKSA1

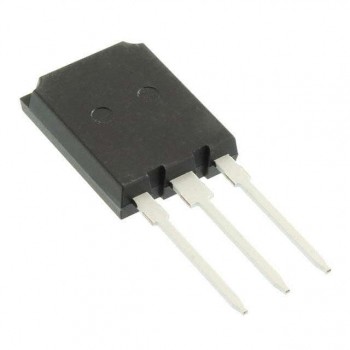

IKQ75N120CS6XKSA1
