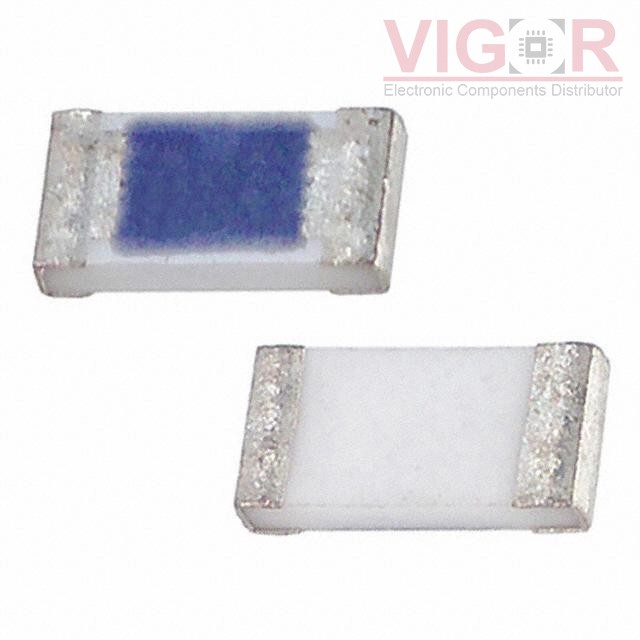

0685P9100-01

Image is for reference,
please contact us to get the real picture

Part No :: 0685P9100-01

Manufacturer: Bel Fuse, Inc.

Description: FUSE 10A 50VDC FAST 1206 SMD

Catalog: Fuses

Shipped from: HK warehouse

Expected Shipping Date: Aug 07 - Aug 11 2025

DataSheet: 0685P9100-01 PDF

Availability: 4101 pieces

Unit Price: ~~$0.59000~~

Current price of 0685P9100-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0685P9100-01 Specifications

Type	Description
Series:	0685P
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	10 A
Voltage Rating - AC:	-
Voltage Rating - DC:	50 V
Response Time:	Fast Blow
Package / Case:	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:	150A
Melting I²t:	25
Approval Agency:	AEC-Q200, CE, cURus
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

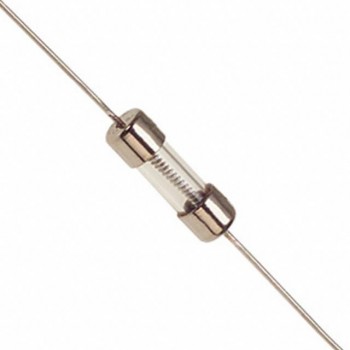

0230.350HXP

FUSE GLASS 350MA 250VAC 125VDC

HOT

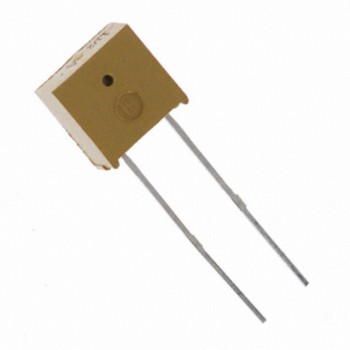

PCB-3/4-R

FUSE BRD MNT 750MA 250VAC 450VDC

HOT

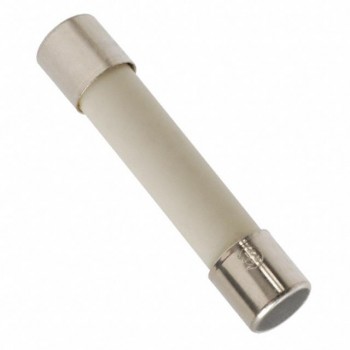

0332009.HXP
