Type | Description |
---|---|
Series: | PFRY |
Package: | Bulk |
Part Status: | Active |
Type: | Polymeric |
Voltage - Max: | 72V |
Current - Max: | 40 A |
Current - Hold (Ih) (Max): | 1.6 A |
Current - Trip (It): | 3.2 A |
Time to Trip: | 11.4 s |
Resistance - Initial (Ri) (Min): | 90 mOhms |
Resistance - Post Trip (R1) (Max): | 220 mOhms |
Resistance - 25°C (Typ): | - |
Operating Temperature: | -40°C ~ 85°C |
Ratings: | - |
Mounting Type: | Through Hole |
Package / Case: | Radial, Disc |
Size / Dimension: | 0.549" L x 0.118" W (13.94mm x 3.00mm) |
Height - Seated (Max): | 0.783" (19.90mm) |
Thickness (Max): | - |
Lead Spacing: | 0.201" (5.10mm) |

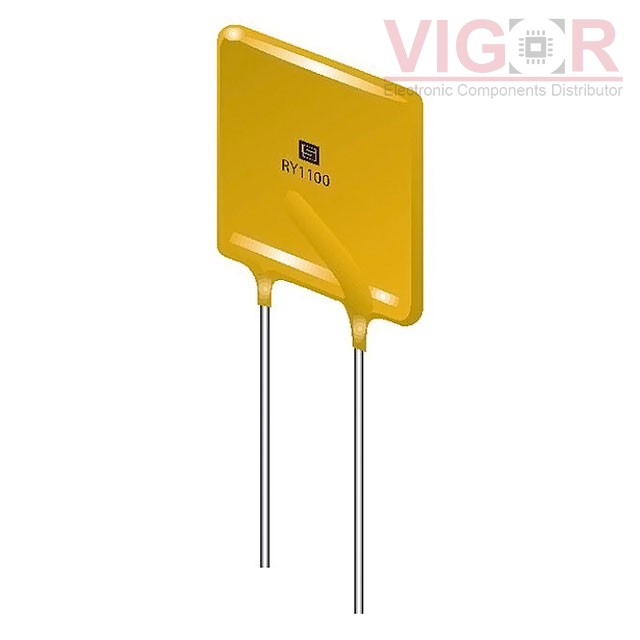

PTC RESET FUSE 72V 1.6A RADIAL
