PTCCL05H760HBE

PTCCL05H760HBE

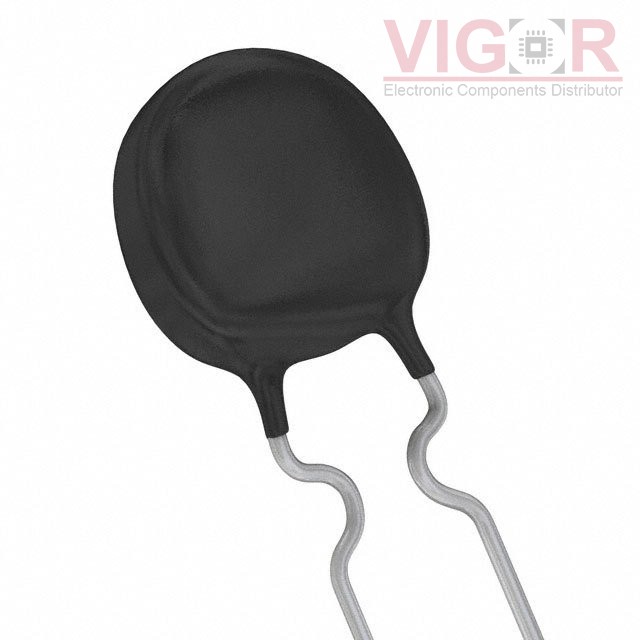

Image is for reference,
please contact us to get the real picture

Part No :

PTCCL05H760HBE

Manufacturer
Vishay BC Components/Beyshlag/Draloric
Description
PTC RESET FUSE 265V 76MA RADIAL
Catalog
PTC Resettable Fuses
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
PTCCL05H760HBE PDF
Availability
4244 pieces
Unit Price
$1.11000

Current price of PTCCL05H760HBE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTCCL05H760HBE Specifications
Type Description
Series:PTCCL
Package:Bulk
Part Status:Active
Type:Ceramic
Voltage - Max:265V
Current - Max:550 mA
Current - Hold (Ih) (Max):76 mA
Current - Trip (It):115 mA
Time to Trip:-
Resistance - Initial (Ri) (Min):-
Resistance - Post Trip (R1) (Max):-
Resistance - 25°C (Typ):85 Ohms
Operating Temperature:0°C ~ 70°C
Ratings:-
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.197" Dia x 0.217" T (5.00mm x 5.50mm)
Height - Seated (Max):0.394" (10.00mm)
Thickness (Max):-
Lead Spacing:0.197" (5.00mm)
