B59945C0160A070

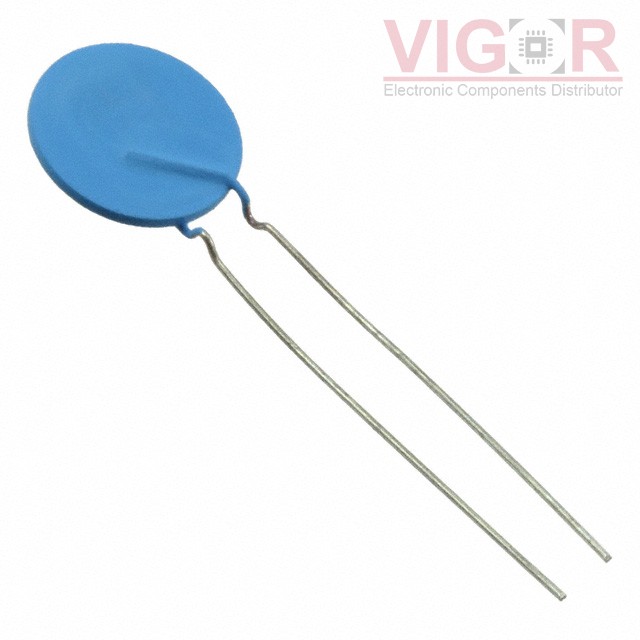

Image is for reference,
please contact us to get the real picture

Part No :: B59945C0160A070

Manufacturer: TDK EPCOS

Description: PTC RESET FUSE 20V 1.5A RADIAL

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: B59945C0160A070 PDF

Availability: 1535 pieces

Unit Price: ~~$2.03000~~

Current price of B59945C0160A070 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B59945C0160A070 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Ceramic
Voltage - Max:	20V
Current - Max:	8 A
Current - Hold (Ih) (Max):	1.5 A
Current - Trip (It):	3.05 A
Time to Trip:	-
Resistance - Initial (Ri) (Min):	-
Resistance - Post Trip (R1) (Max):	-
Resistance - 25°C (Typ):	450 mOhms
Operating Temperature:	-40°C ~ 85°C
Ratings:	AEC-Q200
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.689" Dia x 0.138" T (17.50mm x 3.50mm)
Height - Seated (Max):	0.827" (21.00mm)
Thickness (Max):	-
Lead Spacing:	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
