SMCG13CAHE3/9AT

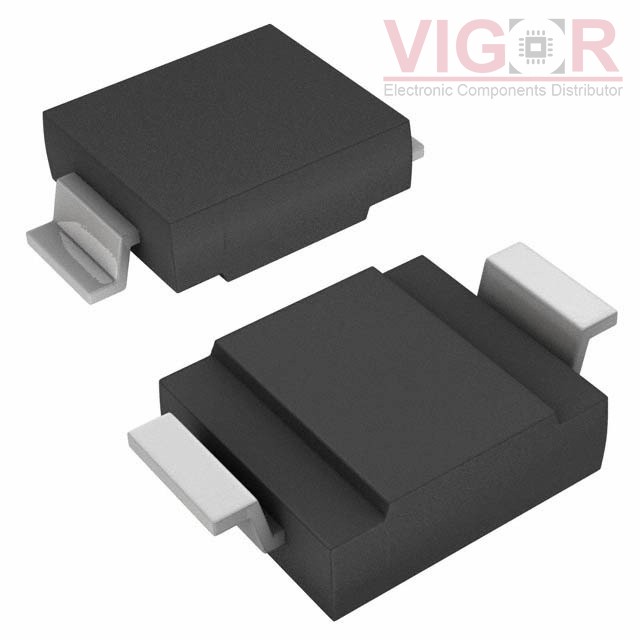

Image is for reference,
please contact us to get the real picture

Part No :

SMCG13CAHE3/9AT

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
TVS DIODE 13V 21.5V DO215AB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
SMCG13CAHE3/9AT PDF
Availability
0 pieces
Unit Price
$0.70140

Current price of SMCG13CAHE3/9AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Automotive, AEC-Q101, TransZorb®
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):13V
Voltage - Breakdown (Min):14.4V
Voltage - Clamping (Max) @ Ipp:21.5V
Current - Peak Pulse (10/1000µs):69.8A
Power - Peak Pulse:1500W (1.5kW)
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-215AB, SMC Gull Wing
Supplier Device Package:DO-215AB (SMCG)
