SMLJ78A

SMLJ78A

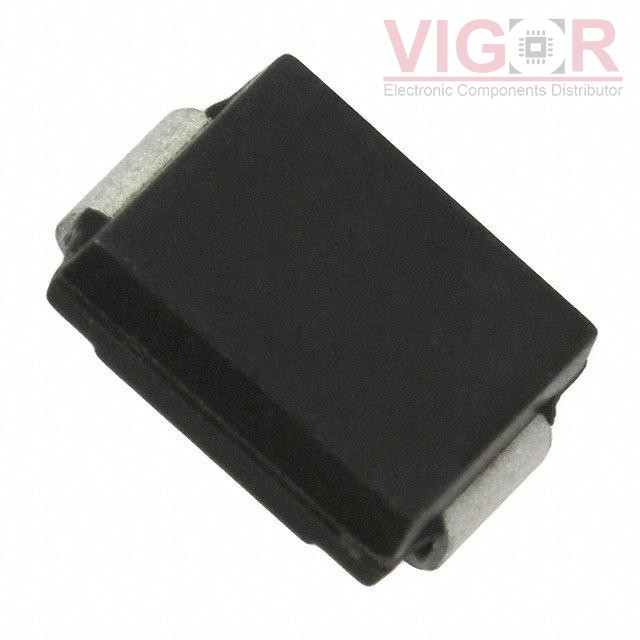

Image is for reference,
please contact us to get the real picture

Part No :

SMLJ78A

Manufacturer
J.W. Miller / Bourns
Description
TVS DIODE 78V 126V SMC
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
SMLJ78A PDF
Availability
5506 pieces
Unit Price
$1.16000

Current price of SMLJ78A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMLJ78A Specifications
Type Description
Series:SMLJ
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):78V
Voltage - Breakdown (Min):86.7V
Voltage - Clamping (Max) @ Ipp:126V
Current - Peak Pulse (10/1000µs):22.8A
Power - Peak Pulse:3000W (3kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AB, SMC
Supplier Device Package:SMC (DO-214AB)
