824520901

824520901

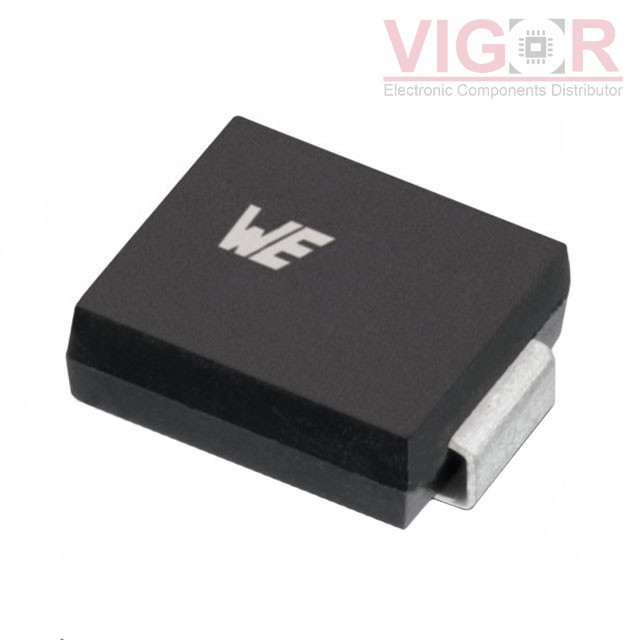

Image is for reference,
please contact us to get the real picture

Part No :

824520901

Manufacturer
Würth Elektronik Midcom
Description
TVS DIODE 90V 146V DO214AA
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
824520901 PDF
Availability
0 pieces
Unit Price
$0.23500

Current price of 824520901 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

824520901 Specifications
Type Description
Series:WE-TVSP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):90V (Max)
Voltage - Breakdown (Min):105.5V (Typ)
Voltage - Clamping (Max) @ Ipp:146V
Current - Peak Pulse (10/1000µs):4.1A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:DO-214AA
