ESD5Z3V3

ESD5Z3V3

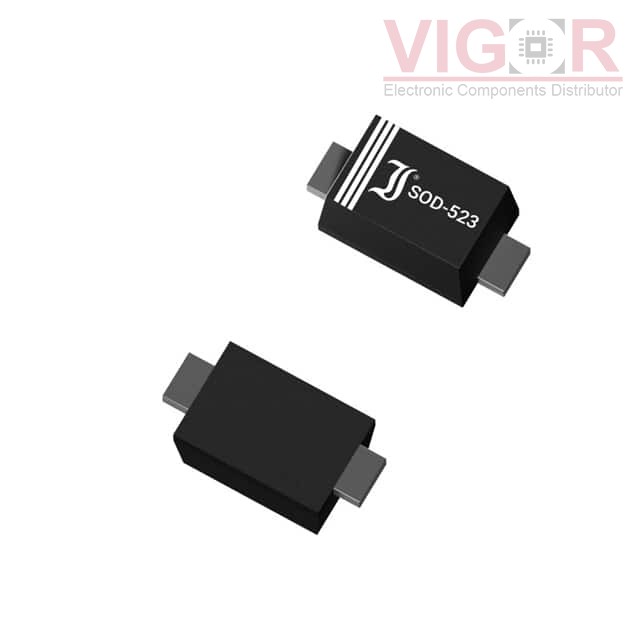

Image is for reference,
please contact us to get the real picture

Part No :

ESD5Z3V3

Manufacturer
Diotec Semiconductor
Description
ESD SOD-523 3.3V 158W UNI
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
ESD5Z3V3 PDF
Availability
9000 pieces
Unit Price
$0.04260

Current price of ESD5Z3V3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD5Z3V3 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):3.3V
Voltage - Breakdown (Min):5V
Voltage - Clamping (Max) @ Ipp:8.4V
Current - Peak Pulse (10/1000µs):5A (8/20µs)
Power - Peak Pulse:134W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:105pF @ 1MHz
Operating Temperature:-50°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SOD-523
