P6SMAJ22ADF-13

P6SMAJ22ADF-13

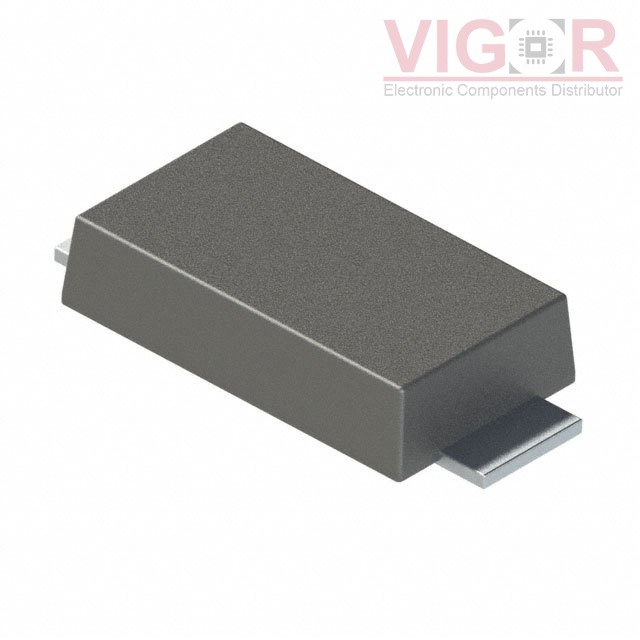

Image is for reference,
please contact us to get the real picture

Part No :

P6SMAJ22ADF-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TVS DIODE 22V 35.5V DFLAT
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
P6SMAJ22ADF-13 PDF
Availability
0 pieces
Unit Price
$0.14195

Current price of P6SMAJ22ADF-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P6SMAJ22ADF-13 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.5V
Current - Peak Pulse (10/1000µs):16.9A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:2-SMD, Flat Lead
Supplier Device Package:D-Flat
