SD22-01FTG

SD22-01FTG

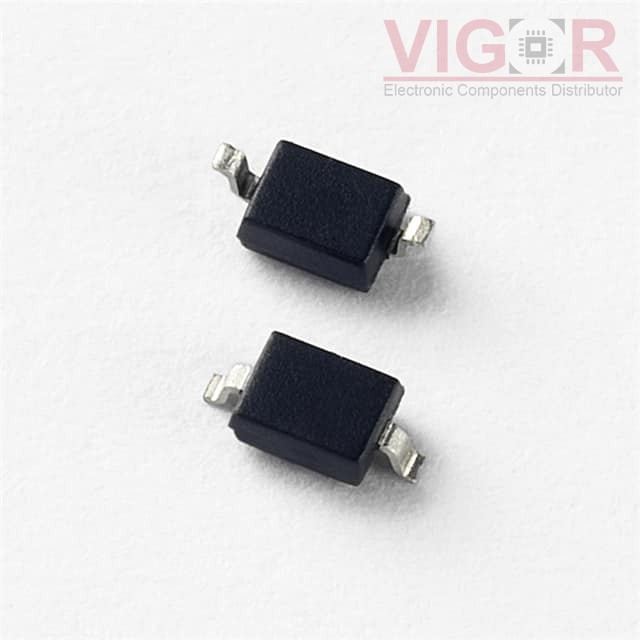

Image is for reference,
please contact us to get the real picture

Part No :

SD22-01FTG

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE ESD 22V 27A SOD323
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SD22-01FTG PDF
Availability
24203000 pieces
Unit Price
$0.43000

Current price of SD22-01FTG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SD22-01FTG Specifications
Type Description
Series:SD, SPA®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V (Max)
Voltage - Breakdown (Min):23V
Voltage - Clamping (Max) @ Ipp:35.5V (Typ)
Current - Peak Pulse (10/1000µs):27A (8/20µs)
Power - Peak Pulse:950W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:160pF @ 1MHz
Operating Temperature:-40°C ~ 150°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-76, SOD-323
Supplier Device Package:SOD-323
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
