ESD3V3D5-TP

ESD3V3D5-TP

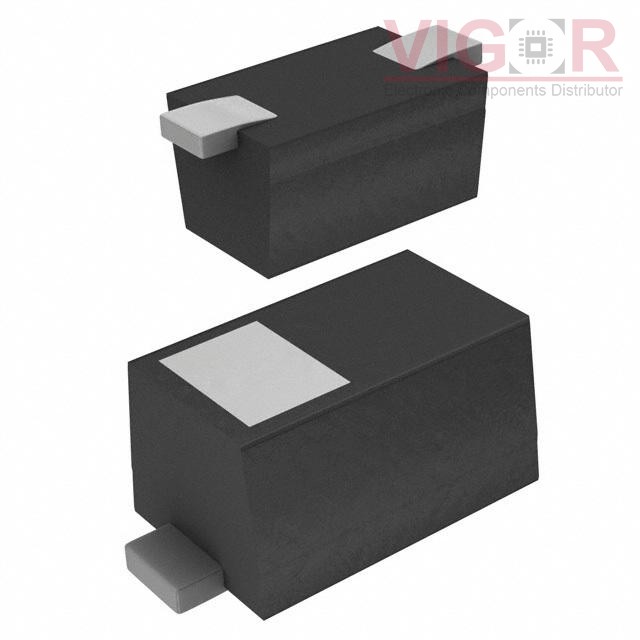

Image is for reference,
please contact us to get the real picture

Part No :

ESD3V3D5-TP

Manufacturer
Micro Commercial Components (MCC)
Description
TVS DIODE 3.3V 14.1V SOD523
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
ESD3V3D5-TP PDF
Availability
192623 pieces
Unit Price
$0.35000

Current price of ESD3V3D5-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD3V3D5-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):3.3V (Max)
Voltage - Breakdown (Min):5V
Voltage - Clamping (Max) @ Ipp:14.1V
Current - Peak Pulse (10/1000µs):11.2A (8/20µs)
Power - Peak Pulse:158W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:105pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SOD-523
