TLD8S14AH

TLD8S14AH

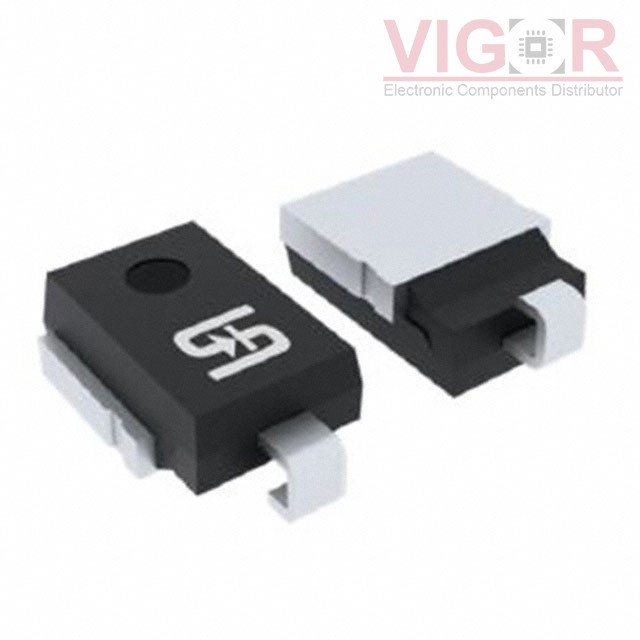

Image is for reference,
please contact us to get the real picture

Part No :

TLD8S14AH

Manufacturer
TSC (Taiwan Semiconductor)
Description
6600W,10V-43V SURFACE MOUNT TRAN
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
TLD8S14AH PDF
Availability
1500 pieces
Unit Price
$2.25529

Current price of TLD8S14AH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLD8S14AH Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):14V
Voltage - Breakdown (Min):15.6V
Voltage - Clamping (Max) @ Ipp:23.2V
Current - Peak Pulse (10/1000µs):284A
Power - Peak Pulse:6600W (6.6kW)
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-218AB
Supplier Device Package:DO-218AB
