JANTX1N5638A

JANTX1N5638A

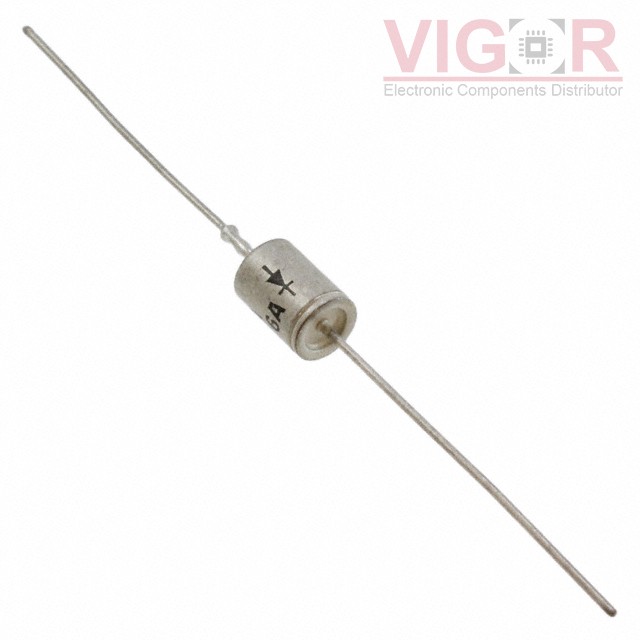

Image is for reference,
please contact us to get the real picture

Part No :

JANTX1N5638A

Manufacturer
Roving Networks / Microchip Technology
Description
TVS DIODE 13.6VWM 22.5VC DO-13
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
JANTX1N5638A PDF
Availability
0 pieces
Unit Price
$49.01000

Current price of JANTX1N5638A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JANTX1N5638A Specifications
Type Description
Series:Military, MIL-PRF-19500/500
Package:Bulk
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):13.6V
Voltage - Breakdown (Min):15.2V
Voltage - Clamping (Max) @ Ipp:22.5V
Current - Peak Pulse (10/1000µs):67A
Power - Peak Pulse:1500W (1.5kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:DO-13
Supplier Device Package:DO-202AA (DO-13)
