D3V3H1B2LP-7B

D3V3H1B2LP-7B

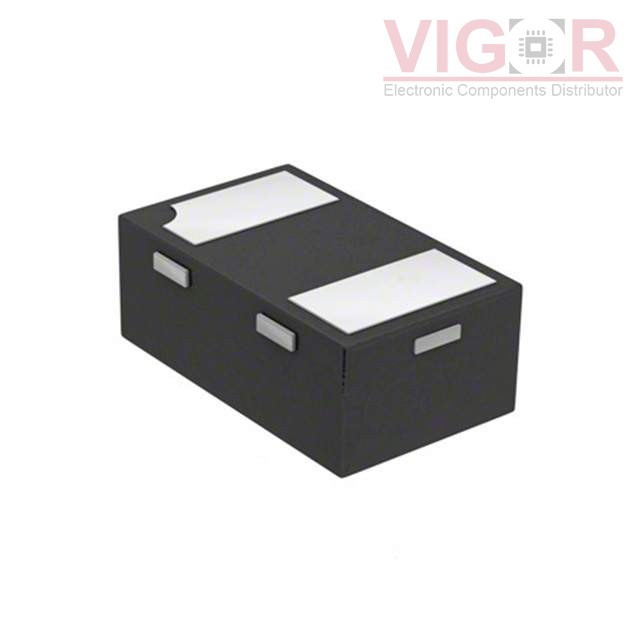

Image is for reference,
please contact us to get the real picture

Part No :

D3V3H1B2LP-7B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TVS DIODE 3.3V 9.5V DFN1006-2
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
D3V3H1B2LP-7B PDF
Availability
12772 pieces
Unit Price
$0.43000

Current price of D3V3H1B2LP-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

D3V3H1B2LP-7B Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):3.3V (Max)
Voltage - Breakdown (Min):3.8V
Voltage - Clamping (Max) @ Ipp:9.5V
Current - Peak Pulse (10/1000µs):40A (8/20µs)
Power - Peak Pulse:380W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:100pF @ 1MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:0402 (1006 Metric)
Supplier Device Package:X1-DFN1006-2
