TPSMF4L22A

TPSMF4L22A

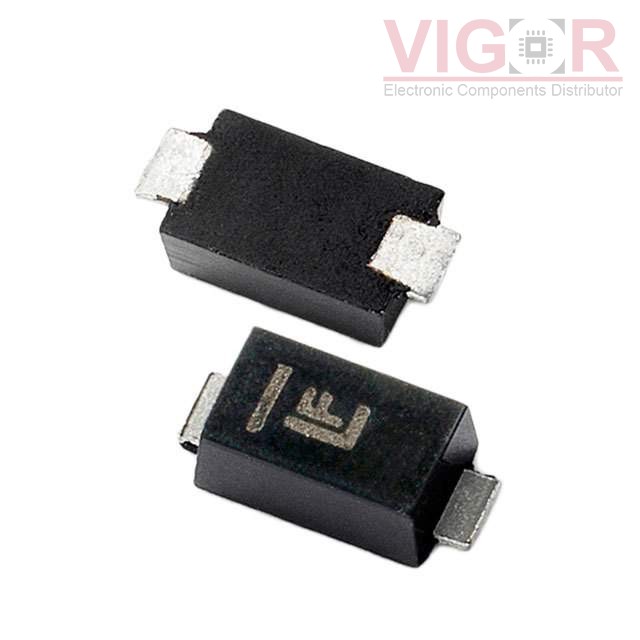

Image is for reference,
please contact us to get the real picture

Part No :

TPSMF4L22A

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 22V 35.5V SOD123FL
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
TPSMF4L22A PDF
Availability
3823 pieces
Unit Price
$0.42000

Current price of TPSMF4L22A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPSMF4L22A Specifications
Type Description
Series:Automotive, AEC-Q101, TPSMF4L
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.5V
Current - Peak Pulse (10/1000µs):11.3A
Power - Peak Pulse:400W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOD-123F
Supplier Device Package:SOD-123FL
