ESDZV5H-1BU2

ESDZV5H-1BU2

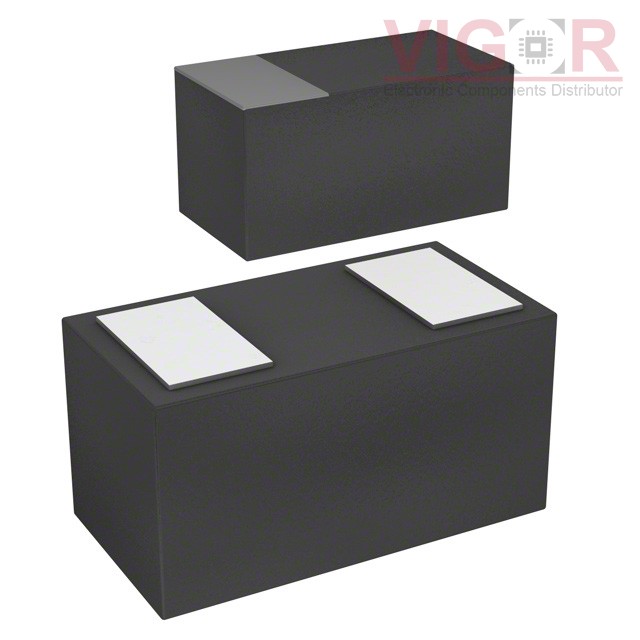

Image is for reference,
please contact us to get the real picture

Part No :

ESDZV5H-1BU2

Manufacturer
STMicroelectronics
Description
ULTRA LOW CLAMPING SINGLE LINE B
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
ESDZV5H-1BU2 PDF
Availability
0 pieces
Unit Price
$0.01873

Current price of ESDZV5H-1BU2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESDZV5H-1BU2 Specifications
Type Description
Series:ESDZ
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5.5V (Max)
Voltage - Breakdown (Min):6.5V
Voltage - Clamping (Max) @ Ipp:11V
Current - Peak Pulse (10/1000µs):4A (8/20µs)
Power - Peak Pulse:40W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:4pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:ST0201
