ESD3B12WS

ESD3B12WS

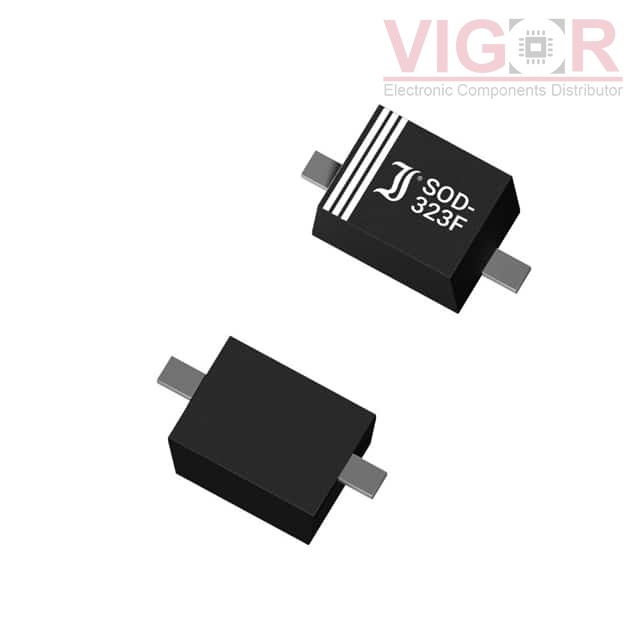

Image is for reference,
please contact us to get the real picture

Part No :

ESD3B12WS

Manufacturer
Diotec Semiconductor
Description
ESD SOD-323 12V 350W UNI
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
ESD3B12WS PDF
Availability
0 pieces
Unit Price
$0.07420

Current price of ESD3B12WS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD3B12WS Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):12V
Voltage - Breakdown (Min):13.3V
Voltage - Clamping (Max) @ Ipp:24V
Current - Peak Pulse (10/1000µs):15A (8/20µs)
Power - Peak Pulse:350W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:100pF @ 1MHz
Operating Temperature:-50°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-90, SOD-323F
Supplier Device Package:SOD-323
