SMB15F20AY

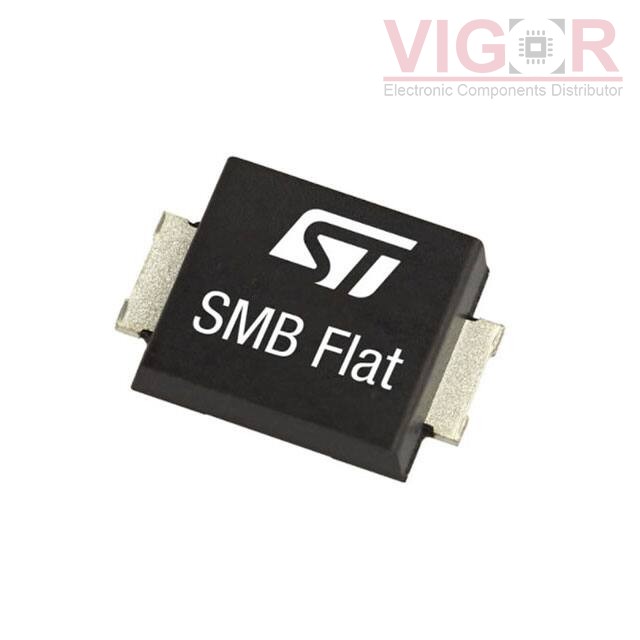

Image is for reference,
please contact us to get the real picture

Part No :: SMB15F20AY

Manufacturer: STMicroelectronics

Description: AUTOMOTIVE 1500 W, 20 V TVS IN S

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: SMB15F20AY PDF

Availability: 0 pieces

Unit Price: ~~$0.64000~~

Current price of SMB15F20AY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMB15F20AY Specifications

Type	Description
Series:	Automotive, AEC-Q101, SMB15F
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	20V (Max)
Voltage - Breakdown (Min):	22.2V
Voltage - Clamping (Max) @ Ipp:	42.8V
Current - Peak Pulse (10/1000µs):	234A (8/20µs)
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-221AA, SMB Flat Leads
Supplier Device Package:	SMBflat
