SZ1SMA85AT3G

SZ1SMA85AT3G

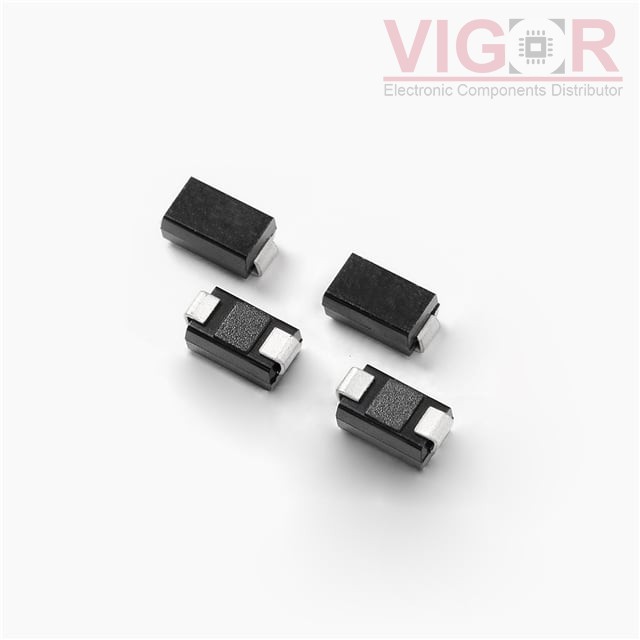

Image is for reference,
please contact us to get the real picture

Part No :

SZ1SMA85AT3G

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 85V 137VC SMA
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
SZ1SMA85AT3G PDF
Availability
5100 pieces
Unit Price
$0.64000

Current price of SZ1SMA85AT3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SZ1SMA85AT3G Specifications
Type Description
Series:Automotive, AEC-Q101, SZ1SMA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):85V
Voltage - Breakdown (Min):94.4V
Voltage - Clamping (Max) @ Ipp:137V
Current - Peak Pulse (10/1000µs):2.9A
Power - Peak Pulse:400W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:173pF @ 1MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AC, SMA
Supplier Device Package:SMA (DO-214AC)
