SMAJ8.5

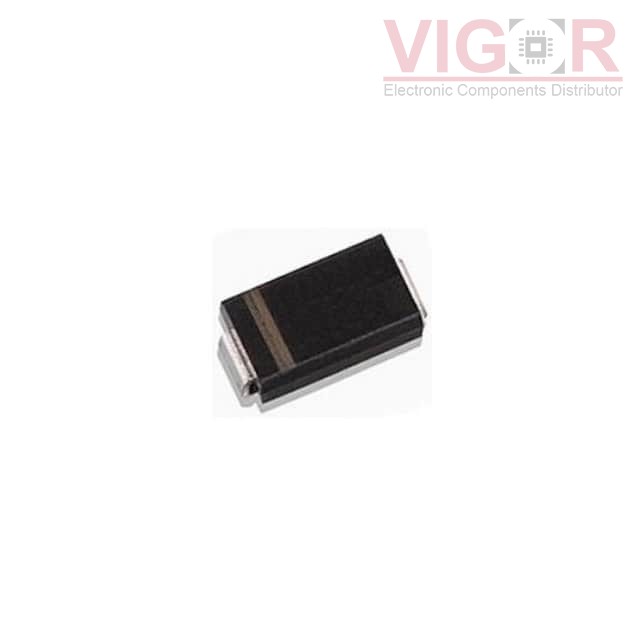

Image is for reference,
please contact us to get the real picture

Part No :: SMAJ8.5

Manufacturer: Meritek

Description: TVS DIODE 8.5V 15.9V DO-214AC (S

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SMAJ8.5 PDF

Availability: 0 pieces

Unit Price: ~~$0.10088~~

Current price of SMAJ8.5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMAJ8.5 Specifications

Type	Description
Series:	SMAJ
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	8.5V
Voltage - Breakdown (Min):	9.44V
Voltage - Clamping (Max) @ Ipp:	15.9V
Current - Peak Pulse (10/1000µs):	25.16A
Power - Peak Pulse:	400W
Power Line Protection:	-
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	DO-214AC (SMA)
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
