SZ1SMA70CAT3G

SZ1SMA70CAT3G

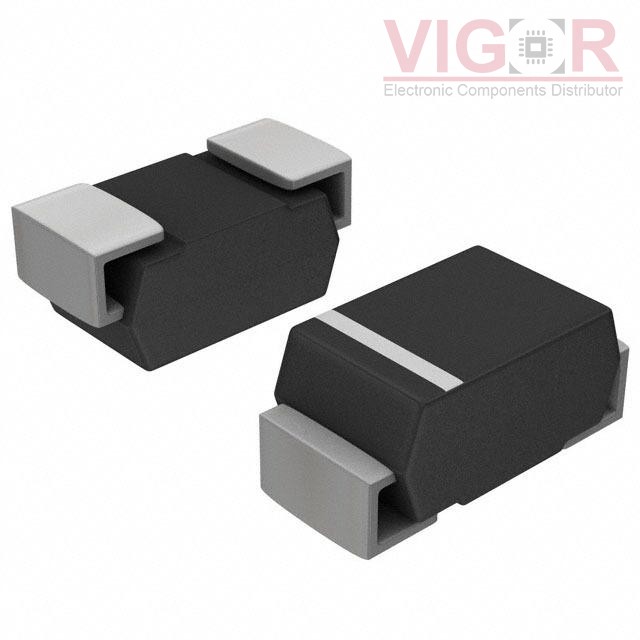

Image is for reference,
please contact us to get the real picture

Part No :

SZ1SMA70CAT3G

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 70V 113V SMA
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
SZ1SMA70CAT3G PDF
Availability
4230 pieces
Unit Price
$0.89000

Current price of SZ1SMA70CAT3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SZ1SMA70CAT3G Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):70V
Voltage - Breakdown (Min):77.8V
Voltage - Clamping (Max) @ Ipp:113V
Current - Peak Pulse (10/1000µs):3.5A
Power - Peak Pulse:400W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:95pF @ 1MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AC, SMA
Supplier Device Package:SMA
