ESDLC12VD3-TP

ESDLC12VD3-TP

Image is for reference,
please contact us to get the real picture

Part No :

ESDLC12VD3-TP

Manufacturer
Micro Commercial Components (MCC)
Description
TVS DIODE 12V 28.6V SOD323
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
ESDLC12VD3-TP PDF
Availability
0 pieces
Unit Price
$0.19200

Current price of ESDLC12VD3-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESDLC12VD3-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):12V
Voltage - Breakdown (Min):13.3V
Voltage - Clamping (Max) @ Ipp:28.6V
Current - Peak Pulse (10/1000µs):11A (8/20µs)
Power - Peak Pulse:350W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:3pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-76, SOD-323
Supplier Device Package:SOD-323
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SMBJ130A M4G

SMBJ130A M4G

TVS DIODE 130V 209V DO214AA
HOT SMBJ160CA-E3/5B

SMBJ160CA-E3/5B

TVS DIODE 160V 259V DO214AA

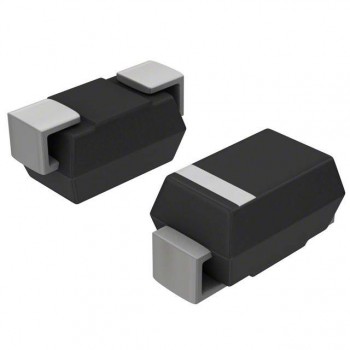

HOT MXLSMBJ14AE3
