3.0SMCJ22AQ-13

3.0SMCJ22AQ-13

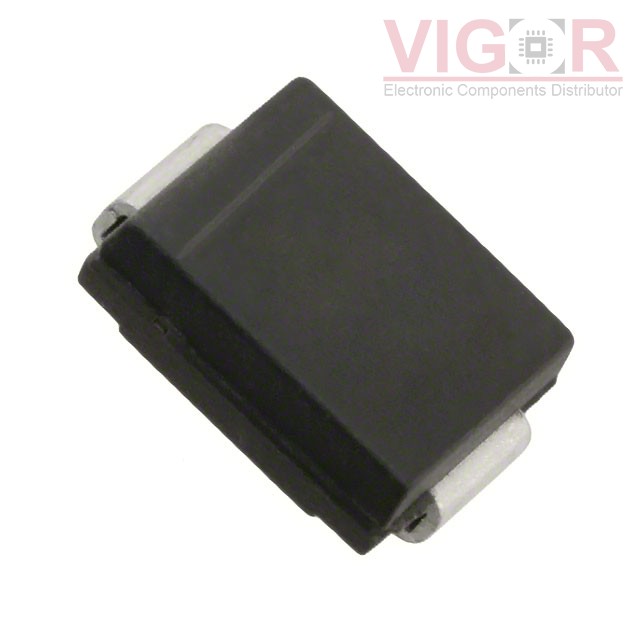

Image is for reference,
please contact us to get the real picture

Part No :

3.0SMCJ22AQ-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANSIENT VOLTAGE SUPPRESSOR SMC
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
3.0SMCJ22AQ-13 PDF
Availability
0 pieces
Unit Price
$0.76636

Current price of 3.0SMCJ22AQ-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3.0SMCJ22AQ-13 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.5V
Current - Peak Pulse (10/1000µs):84.5A
Power - Peak Pulse:3000W (3kW)
Power Line Protection:Yes
Applications:Automotive
Capacitance @ Frequency:3000pF @ 1MHz
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AB, SMC
Supplier Device Package:SMC
