SM5S13AHE3_A/I

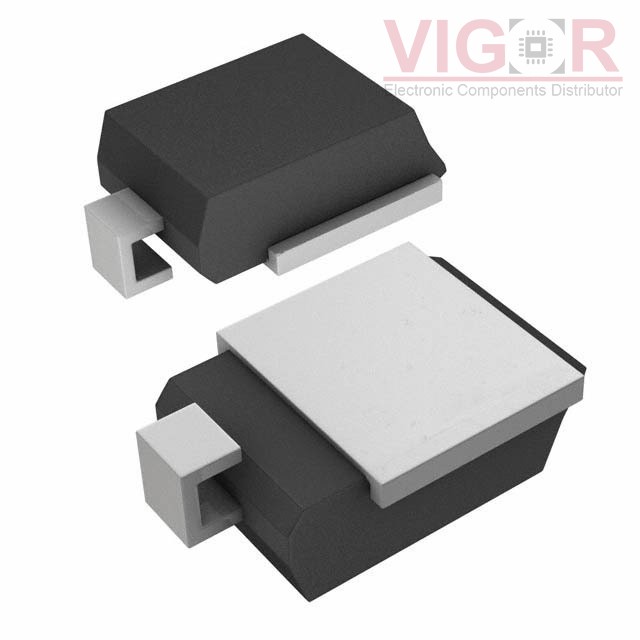

Image is for reference,
please contact us to get the real picture

Part No :: SM5S13AHE3_A/I

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: TVS DIODE 13V 21.5V DO218AB

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: SM5S13AHE3_A/I PDF

Availability: 0 pieces

Unit Price: ~~$2.17257~~

Current price of SM5S13AHE3_A/I is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SM5S13AHE3_A/I Specifications

Type	Description
Series:	Automotive, AEC-Q101, PAR®
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	13V
Voltage - Breakdown (Min):	14.4V
Voltage - Clamping (Max) @ Ipp:	21.5V
Current - Peak Pulse (10/1000µs):	167A
Power - Peak Pulse:	3600W (3.6kW)
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-218AB
Supplier Device Package:	DO-218AB
