SZ1SMB36AT3G

SZ1SMB36AT3G

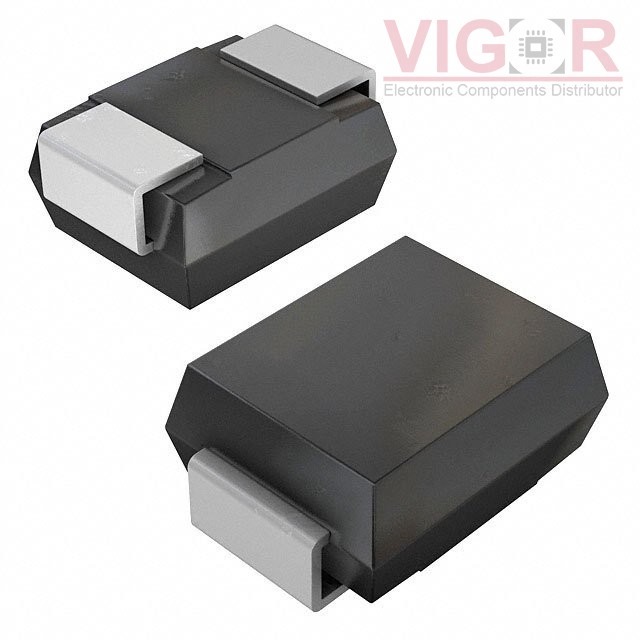

Image is for reference,
please contact us to get the real picture

Part No :

SZ1SMB36AT3G

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 36V 58.1V SMB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
SZ1SMB36AT3G PDF
Availability
2265 pieces
Unit Price
$0.58000

Current price of SZ1SMB36AT3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SZ1SMB36AT3G Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):36V
Voltage - Breakdown (Min):40V
Voltage - Clamping (Max) @ Ipp:58.1V
Current - Peak Pulse (10/1000µs):10.3A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:470pF @ 1MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:SMB
