CDDFN10-0516P

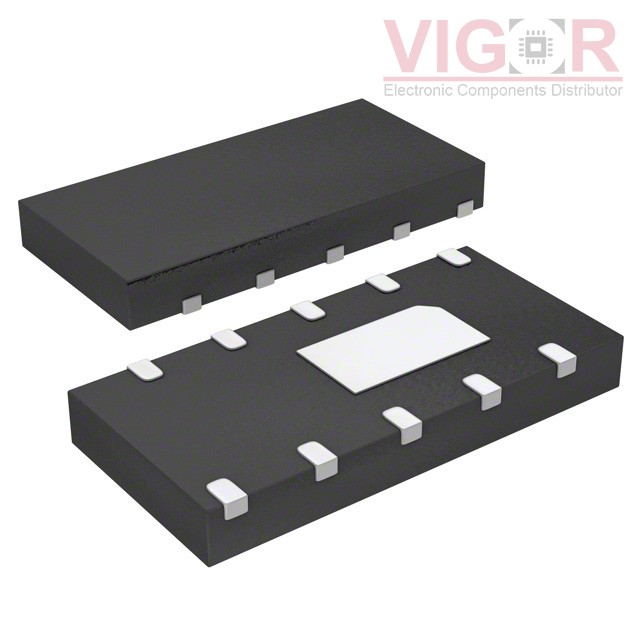

Image is for reference,
please contact us to get the real picture

Part No :: CDDFN10-0516P

Manufacturer: J.W. Miller / Bourns

Description: TVS DIODE 2.2V/3.3V 4.5/7.2V DFN

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Aug 12 - Aug 16 2025

DataSheet: CDDFN10-0516P PDF

Availability: 1992 pieces

Unit Price: ~~$0.68000~~

Current price of CDDFN10-0516P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDDFN10-0516P Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Steering (Rail to Rail)
Unidirectional Channels:	6
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	2.2V (Max), 3.3V (Max)
Voltage - Breakdown (Min):	4.5V
Voltage - Clamping (Max) @ Ipp:	4.5V, 7.2V
Current - Peak Pulse (10/1000µs):	4A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	Yes
Applications:	General Purpose
Capacitance @ Frequency:	0.35pF @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-UDFN Exposed Pad
Supplier Device Package:	10-DFN (4.1x2)

Please confirm the specifications of the products when ordering.
