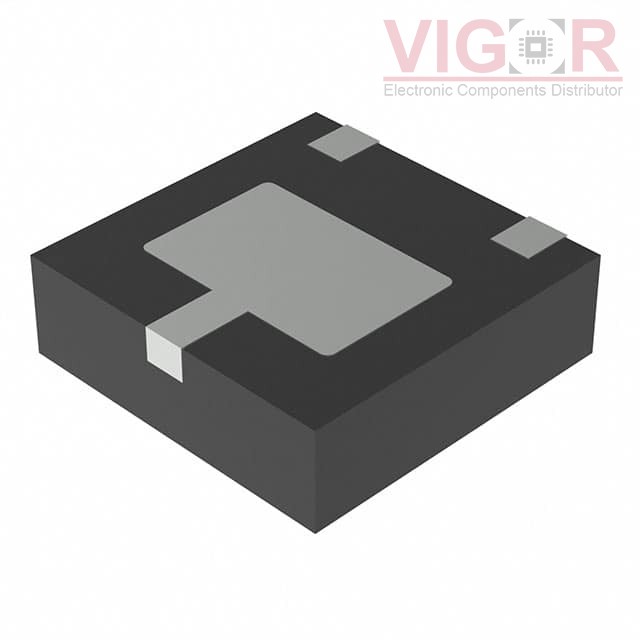

D22V0S1U3LP20-7

D22V0S1U3LP20-7

Image is for reference,
please contact us to get the real picture

Part No :

D22V0S1U3LP20-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
SURGE PROTECTION PP U-DFN2020-3
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
D22V0S1U3LP20-7 PDF
Availability
33000 pieces
Unit Price
$0.54000

Current price of D22V0S1U3LP20-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

D22V0S1U3LP20-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V (Max)
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.6V
Current - Peak Pulse (10/1000µs):9A
Power - Peak Pulse:4000W (4kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:3-UDFN Exposed Pad
Supplier Device Package:U-DFN2020-3 (Type C)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

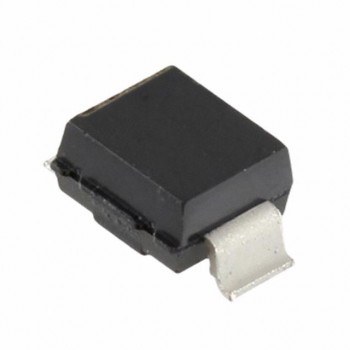

HOT MXLSMBG33CA

MXLSMBG33CA

TVS DIODE 33V 53.3V DO215AA
HOT P4KE10CA-E3/73

P4KE10CA-E3/73

TVS DIODE 8.55V 14.5V DO204AL

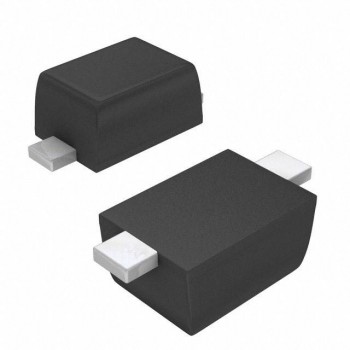

HOT T12S5-7
