ESD8504GMUTAG

ESD8504GMUTAG

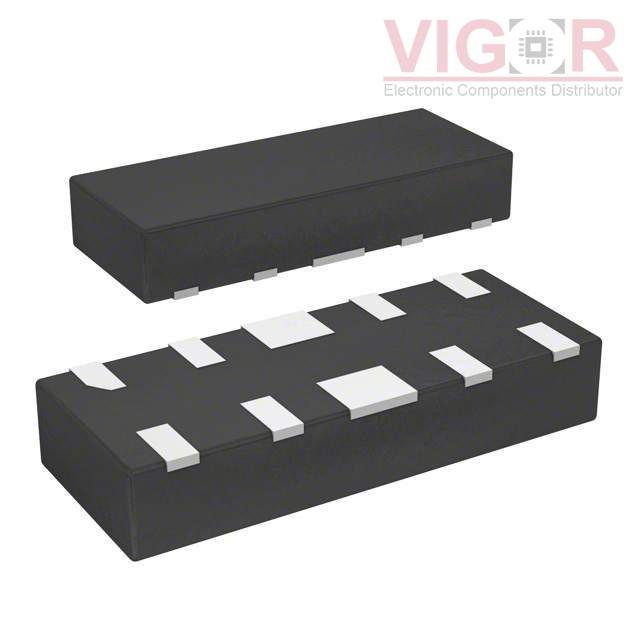

Image is for reference,
please contact us to get the real picture

Part No :

ESD8504GMUTAG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TVS DIODE 3V 7V 10UDFN
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
ESD8504GMUTAG PDF
Availability
0 pieces
Unit Price
$0.41000

Current price of ESD8504GMUTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD8504GMUTAG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:4
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):3V (Max)
Voltage - Breakdown (Min):4V
Voltage - Clamping (Max) @ Ipp:7V
Current - Peak Pulse (10/1000µs):16A (100ns)
Power - Peak Pulse:-
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:0.39pF @ 1MHz
Operating Temperature:-55°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:10-UFDFN
Supplier Device Package:10-UDFN (2.5x1)
