NSPU5221MUTBG

NSPU5221MUTBG

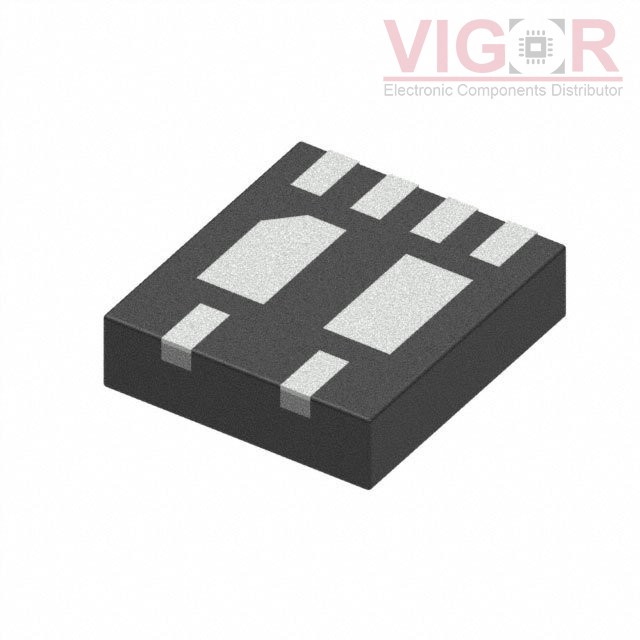

Image is for reference,
please contact us to get the real picture

Part No :

NSPU5221MUTBG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
22V UNIDIRECTIONAL SURGE
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
NSPU5221MUTBG PDF
Availability
618000 pieces
Unit Price
$0.17238

Current price of NSPU5221MUTBG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSPU5221MUTBG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24V
Voltage - Clamping (Max) @ Ipp:35V
Current - Peak Pulse (10/1000µs):120A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:6-UFDFN Exposed Pad
Supplier Device Package:6-UDFN (1.8x2)
