SESD0402Q2UG-0020-090

SESD0402Q2UG-0020-090

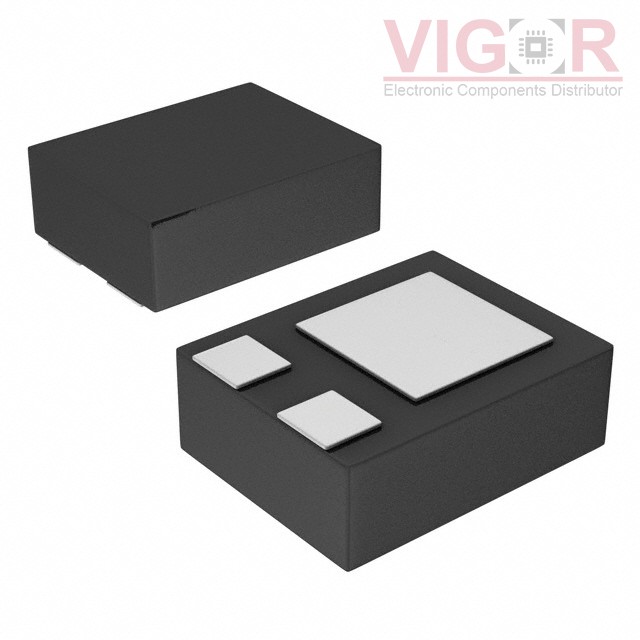

Image is for reference,
please contact us to get the real picture

Part No :

SESD0402Q2UG-0020-090

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 7V 9.2V 0402/3DFN
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
SESD0402Q2UG-0020-090 PDF
Availability
200000 pieces
Unit Price
$0.87000

Current price of SESD0402Q2UG-0020-090 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SESD0402Q2UG-0020-090 Specifications
Type Description
Series:Automotive, AEC-Q101, SESD, SPA®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:2
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):7V (Max)
Voltage - Breakdown (Min):9V (Typ)
Voltage - Clamping (Max) @ Ipp:9.2V (Typ)
Current - Peak Pulse (10/1000µs):2A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:Automotive, HDMI
Capacitance @ Frequency:0.2pF @ 3GHz
Operating Temperature:-55°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:3-XFDFN
Supplier Device Package:0402/3DFN (0.6x1)
