SZ1SMB48CAT3G

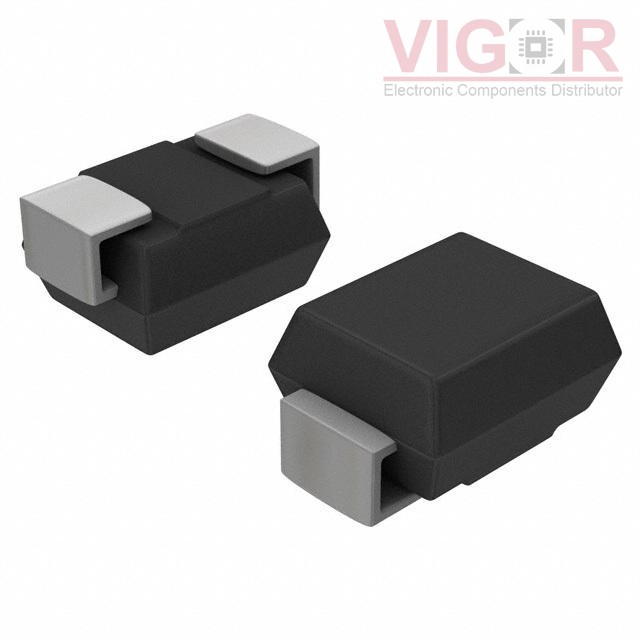

Image is for reference,
please contact us to get the real picture

Part No :: SZ1SMB48CAT3G

Manufacturer: Wickmann / Littelfuse

Description: TVS DIODE 48V 77.4V SMB

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: SZ1SMB48CAT3G PDF

Availability: 2184 pieces

Unit Price: ~~$0.64000~~

Current price of SZ1SMB48CAT3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SZ1SMB48CAT3G Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	48V
Voltage - Breakdown (Min):	53.3V
Voltage - Clamping (Max) @ Ipp:	77.4V
Current - Peak Pulse (10/1000µs):	7.7A
Power - Peak Pulse:	600W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	190pF @ 1MHz
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AA, SMB
Supplier Device Package:	SMB

Please confirm the specifications of the products when ordering.
